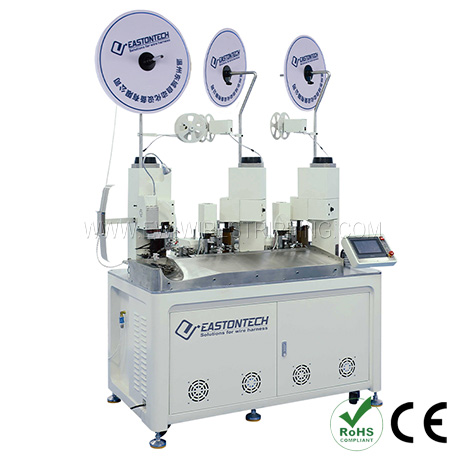

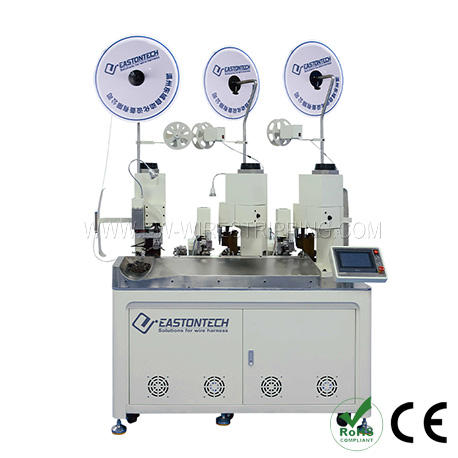

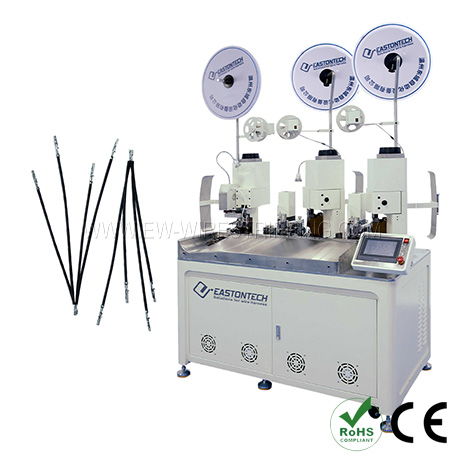

Fully Automatic Four Wire Joint Crimping Machine
Cut Strip Terminate& Solder
Technical Data
| Model | EW-8040 |
| Applicable wire range | AWG28-AWG16 |
| Stripping length | Front 0.5-8mm End:0.1-10mm |
| Cut precision | ±(0.5+0.002*L) mm, L=cut length |
| Cutting length | 40-9999mm |
| Capacity | 1000pcs/hour(L=50-100mm) |
| Crimping force | 2.0T |
| Applicators | 30mm or 40mm strokes for optional |

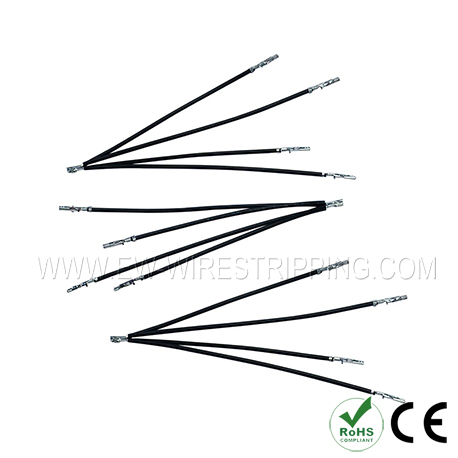

| Function | Two wire both ends/ one end crimping/ Four wire crimp into on e terminal |
| Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
| Power /Power Rating | 220V/110V/50/60HZ /3000W |
| Display language | Chinese/English |
| Dimension | 800*1400*1800mm |
| Weight | 600Kg |
| Power cord plug | European, USA, Chinese plug |
Feature
Fully Automatic Wire Cutting Stripping Four wires Three ends Terminal Crimping Machine adopts procedural control interface with touch screen LCD display,it has operate system in Chinese and English, easy to operate and stable performance.Fast send wire ,cut wire,strip wire and crimp the terminals,high precision, fast speed,front and rear swing arms are both controlled by servo,and ultra low noise,more stable.The length of sending/cutting/stripping wire, and the delay time of crimping,which all can be accomplished by digital configuration.
Application Range
More Info
Model：Fully Automatic Four Wire Joint Crimping Machine
Model:EW-8040
Applicable wire range:AWG28-AWG16
Stripping length:Front 0.5-8mm End:0.1-10mm
Cut precision:±(0.5+0.002*L) mm, L=cut length
Cutting length:40-9999mm
Capacity:1000pcs/hour(L=50-100mm)
Crimping force:2.0T
Applicable wire range:AWG28-AWG16
Stripping length:Front 0.5-8mm End:0.1-10mm
Cut precision:±(0.5+0.002*L) mm, L=cut length
Cutting length:40-9999mm
Capacity:1000pcs/hour(L=50-100mm)
Crimping force:2.0T
