Wire Cutting & Stripping Machine (0.3 - 25 mm2)
Eco-cut&Strip
17352
Model：Wire Cutting & Stripping Machine (0.3 - 25 mm2)
Model:EW-07A
Wire range:0.3-25mm2
Max. conduit diameter:13mm
Length accuracy:±(0.002*L)mm
Productivity:4800-7800pcs/h (L=100mm)
Wire range:0.3-25mm2
Max. conduit diameter:13mm
Length accuracy:±(0.002*L)mm
Productivity:4800-7800pcs/h (L=100mm)
Technical Data
| Model | EW-07A |
| Wire range | 0.3-25mm2 |
| Stripping lengths | Front end:0-100mm Rear end:0-100mm |
| Max. conduit diameter | 13mm |
| Length accuracy | ±(0.002*L)mm |
| Productivity | 83-133pcs/min (L=100mm) |
| Intermediate strip | 13 |
| Noise level | <70dba |
| Electrical connection | AC 220/110V/50/60HZ 800W |
| Operation interface | Bilingual |
| Wire material | PVC ,Teflon, Braided ,Fiberglass Wire |
| Machine dimension | 390*350*255mm(15.21*13.65*9.95in) |
| Weight | 57kg |
Feature
● Safety protection.
● Easy to operate program and low maintenance.
● High precision and productivity solutions for wire cable cutting and stripping.
● Optional external device connection possibility: Wire feeding machine, and wire take-out device...

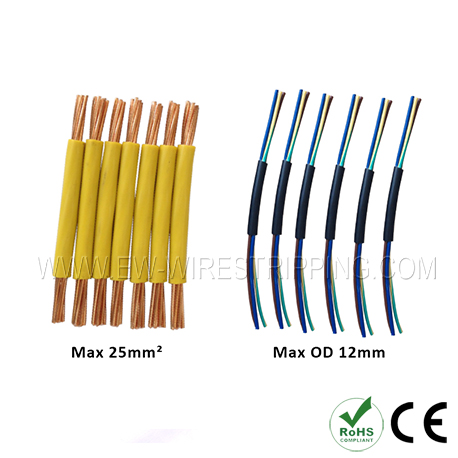

Application Range
