AWG32#～AWG20# EU applicator Compatible Wire Stripping&Crimping Machine
Electrical
Model：AWG32#～AWG20# EU applicator Compatible Wire Stripping&Crimping Machine
Model:EW-5105
Air Source：0.5-0.6mpa
Applicable wire Diameter：AWG32#～AWG20#
Stripping length：1.0mm～6.0mm
Crimping capacity：2T
Stroke：30mm/40mm
Air Source：0.5-0.6mpa
Applicable wire Diameter：AWG32#～AWG20#
Stripping length：1.0mm～6.0mm
Crimping capacity：2T
Stroke：30mm/40mm
Technical Data
|
Model |
EW-5105 |
|
Power Supply |
AC110/220V 50/60Hz |
|
Air Source |
0.5-0.6mpa |
|
Applicable wire Diameter |
AWG32#～AWG20# |
|
Stripping length |
1.0mm～6.0mm |
|
Cutting error |
0.05mm～0.1mm |
|
Position error |
0.05mm～0.1mm |
|
Crimping capacity |
2T |
|
Stroke |
30mm/40mm |
|
Body size |
W730*L350*H700mm |
|
Machine weight |
100KG |
Feature
1.Used for pressing the horizontal stripping terminal machine. The terminal machine adopts servo pressing.
2.The mould has strong universality, and it can simply realize clamping, peeling, cutting and pressing terminal.The whole machine adopts PIC control, all actions can be controlled separately, debugging is more convenient.

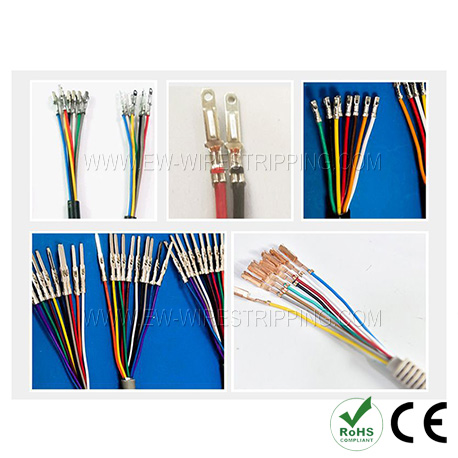

Application Range
