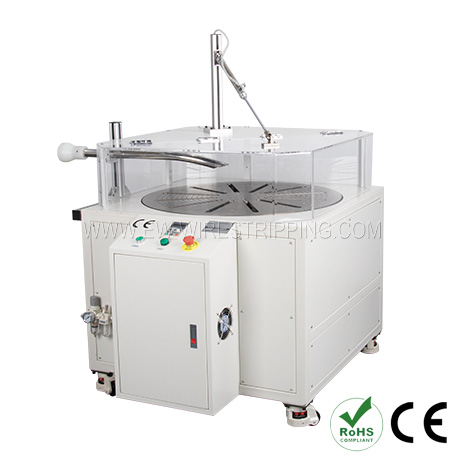

Model：Wire Collecting and winding device

Scan the QR code

Share to:
    •
  • 刷新
Model:  EW-1485
Diameter:  6-25mm
Feeding  height:  810mm
Power:  220V  50HZ  0.75kw
Winding  length：810mm
ENQUIRE NOW!
Video Specifications
  • 1.Used for wire diameter φ 6- -25mm, it can matched up with wire stripping machine.

  • Model

    EW-1485

    Diameter

    6-25mm

    Feeding height

    810mm

    Power

    220V 50HZ 0.75kw

    Dimension

    1000*1250*1150mm

    Weight

    170KG

    Winding range

    ≤600mm

    Winding bar

    Move from up to down,winding ID adjustable

    Winding bar adjust range

    200-650mm

    Winding height

    <140mm
