0.5-2.5mm2 Automatic Ferrule Stripping&Crimping Machine
Electrical
Model：0.5-2.5mm2 Automatic Ferrule Stripping&Crimping Machine
Model：EW-5120
Stripping length：8-12mm
Production：1.8s / wire
Wire size：0.5-2.5mm2
Air supply：0.6-0.8Mpa
Stripping length：8-12mm
Production：1.8s / wire
Wire size：0.5-2.5mm2
Air supply：0.6-0.8Mpa
Technical Data
| Model | EW-5120 |
| Stripping length | 8-12mm |
| Max. Tube length | 12mm |
| Production | 1.8s / wire |
| Wire size | 0.5-2.5mm2 |
| Air supply | 0.6-0.8Mpa |
| Control way | Touch panel, Electric, Pneumatic |
| Terminal supply | Vibrating plate |
| Working temperature | -10～40℃ |
| Power source | AC220V/110V/50/60HZ |
| Weight | 30KG |
| Dimension | W420mm×L400mm×H390mm |
Feature
·Wear-free, maintenance-free
·Easily change from just stripping to stripping and crimping ferrules in one operation
·Simple-fill bowl quickly orients and loads ferrules
·Easy bowl change and easier adjustable bowl speed settings
·Conveniently assessible waste bin

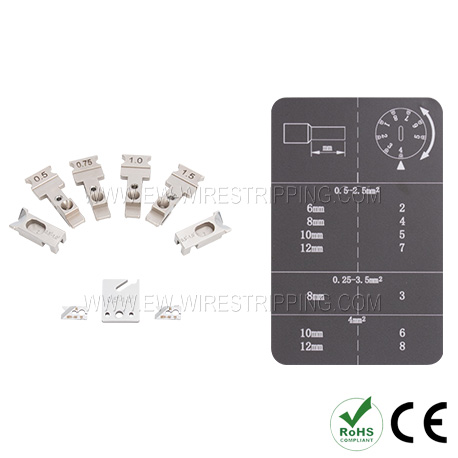

·Easy tool change
