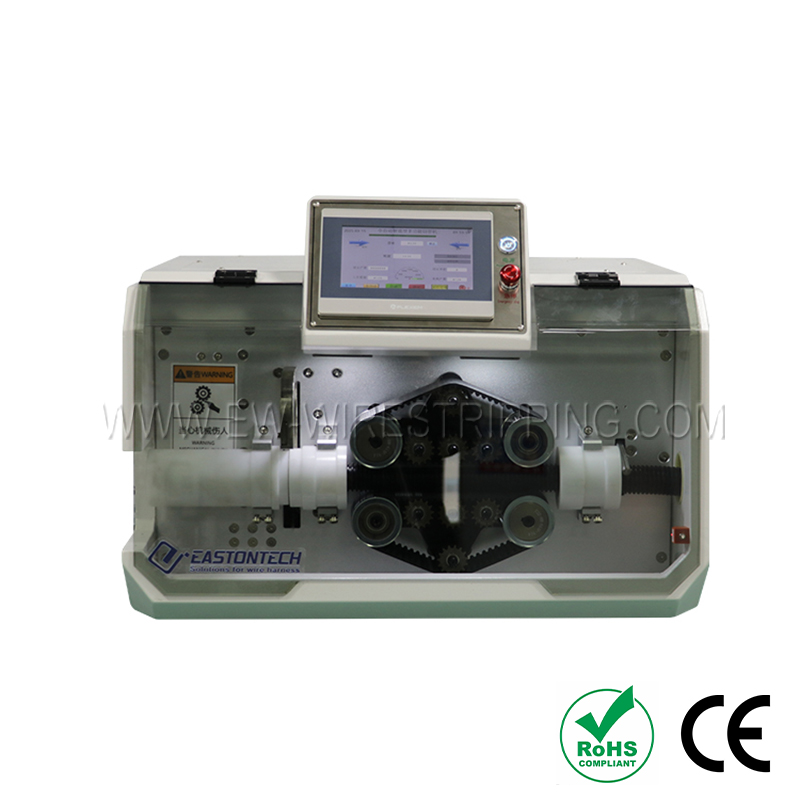

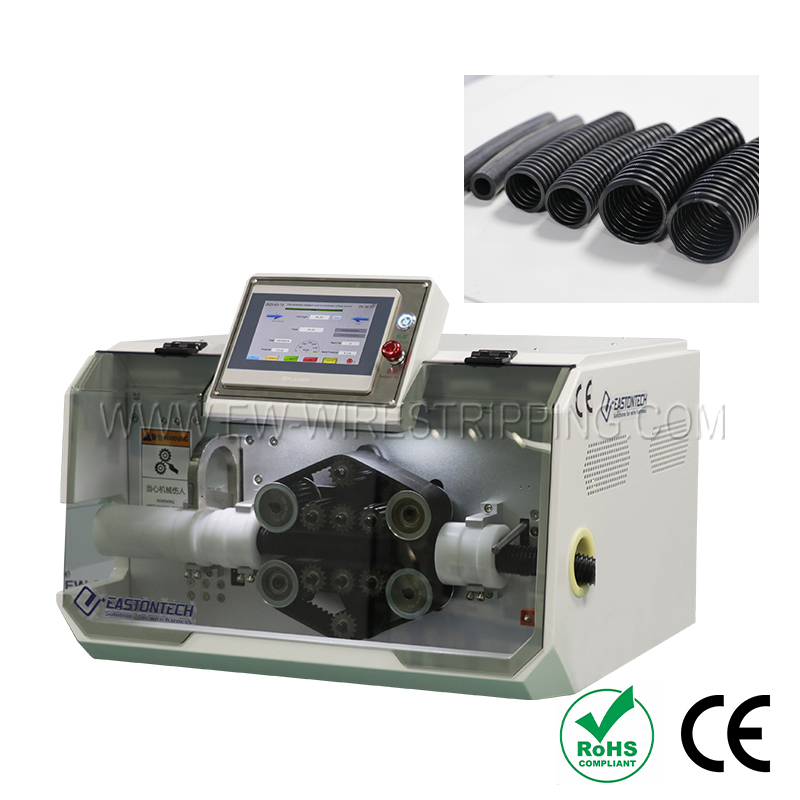

Automatic Corrugated Tube Cutting Machine (5 - 45 mm)(slitting is optional)
Cut
Technical Data
|
Model |
EW-12A-2 |
EW-12A-3 (cut and slit) |
|
Material outer diameter |
5 - 45 mm |
5 - 45 mm |
|
Cutting length |
1 - 99999.9 mm |
1 - 99999.9 mm |
|
Tube slitting |
N/A |
Yes |
|
Cutting increment |
0.1 mm |
0.1 mm |
|
Cutting tolerance |
0.005 * L (L = cutting length) |
0.005 * L (L = cutting length) |
|
Cutting mode |
By motor |
By motor |
|
Cutting stroke |
75 mm |
75 mm |
|
Productivity |
10 - 60 pcs./min |
10 - 60 pcs./min |
|
Control system |
PLC |
PLC |
|
Power supply |
110, 220 V (50 - 60 Hz) |
110, 220 V (50 - 60 Hz) |
|
Power |
500 W |
500 W |

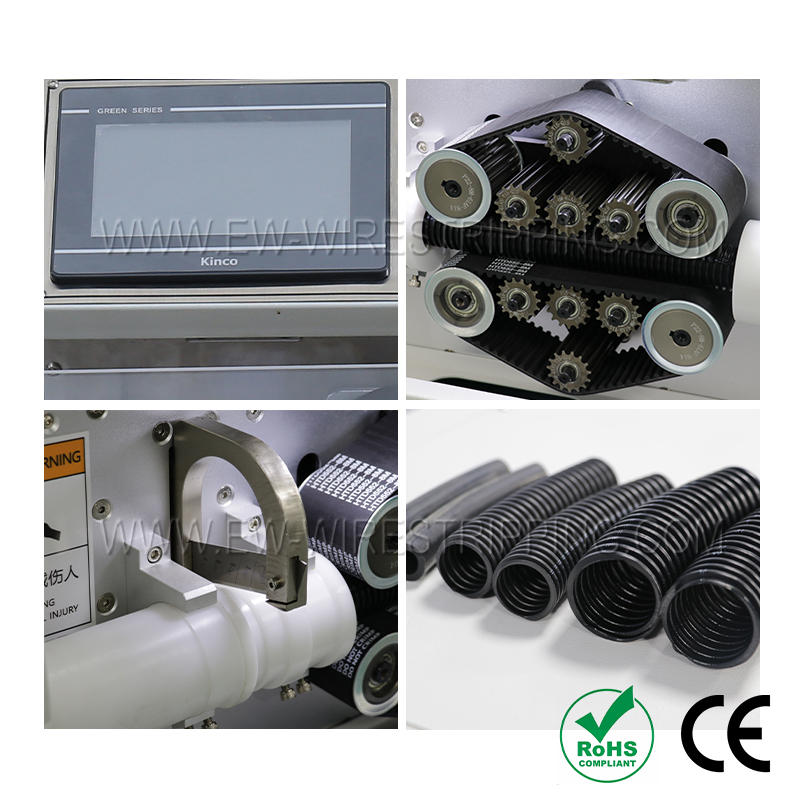

Feature

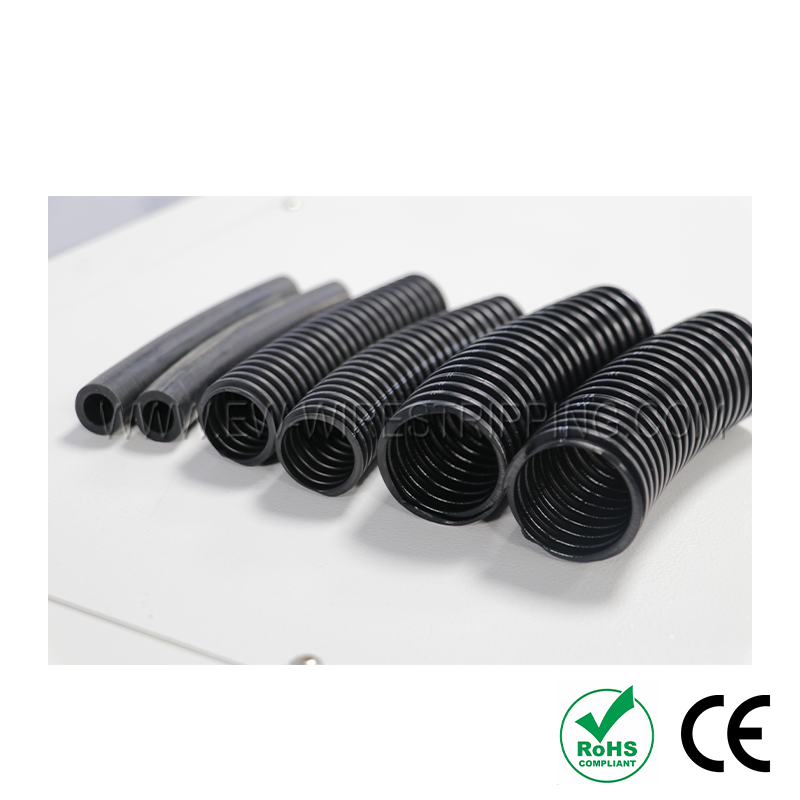

Application Range
More Info
Model：Automatic Corrugated Tube Cutting Machine (5 - 45 mm)(slitting is optional)
1. Material outer diameter: 5 - 45 mm
2. Cutting length: 1 - 99999.9 mm
3. Cutting increment: 0.1 mm
4. Cutting tolerance: 0.005 * L
5. Cutting mode: by motor
6. Cutting stroke: 75 mm
2. Cutting length: 1 - 99999.9 mm
3. Cutting increment: 0.1 mm
4. Cutting tolerance: 0.005 * L
5. Cutting mode: by motor
6. Cutting stroke: 75 mm
