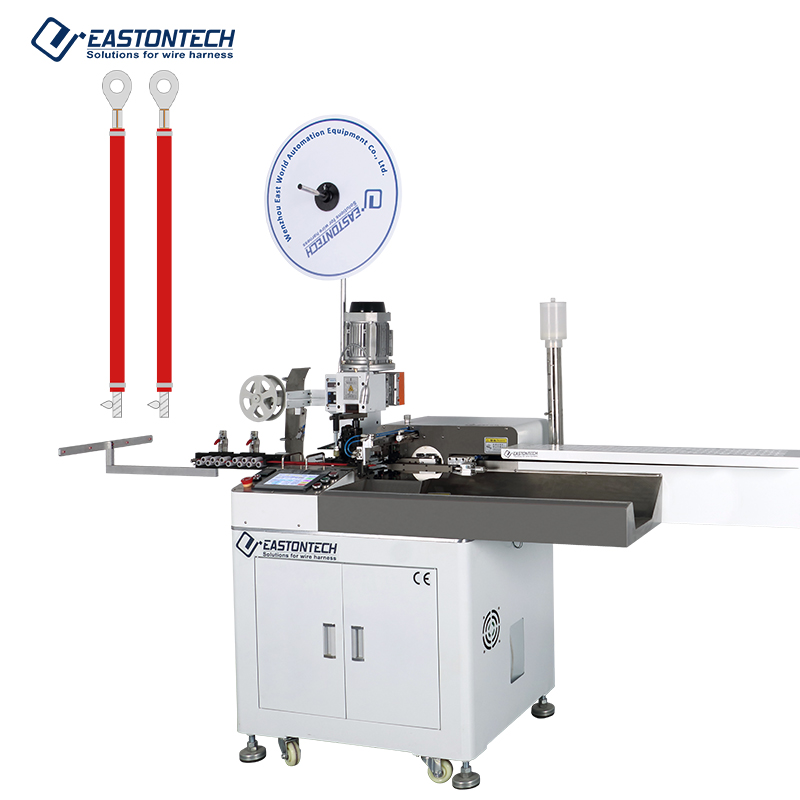

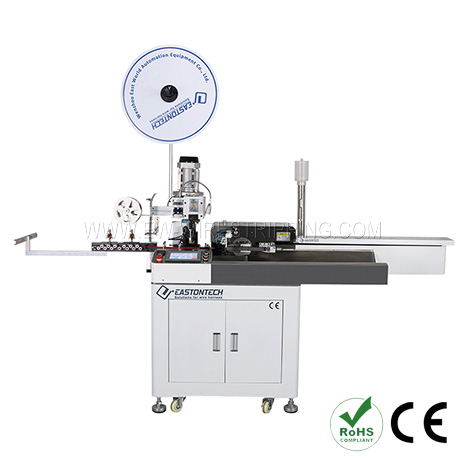

Model：Automatic Wire Crimping and Tinning Machine

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-8050
Applicable  wire  range:AWG32-AWG18
Cutting  length:10-1000mm
Stripping  length:0-10mm
Tinning  length:0.5-10mm
Crimping  force:2.0T
Productivity:5500-6000pcs/hour
ENQUIRE NOW!
Video Specifications

  • With its features of gentle wire processing, fast working speed, economical approach to wearing parts and fully automatic operation, it has quickly become one of our most popular wire processing machines both domestic and abroad. The product data is saved in a database and can be retrieved at any time, with this function you can change different wires in seconds. All the setting such as cutting length, stripping length, flux soaking place and time, tinning place and time, tinning depth will be done easily through LCD touch screen. The solder wire can be set automatically feeding after a certain round of cutting and stripping, no need of manual work.

  •

    Model

    EW-8050

    Applicable wire range

    AWG32-AWG18

    Cutting length

    10-1000mm

    Stripping length

    0-10mm

    Twisting/Tinning length

    0.5-10mm

    Crimping force

    2.0T

    Productivity

    5500-6000pcs/hour

    Applicators

    30mm or 40mm strokes for optional

    Power supply

    220V/110V/50HZ/60HZ

    Accuracy

    0.2±0.02L

    Weight

    450Kg

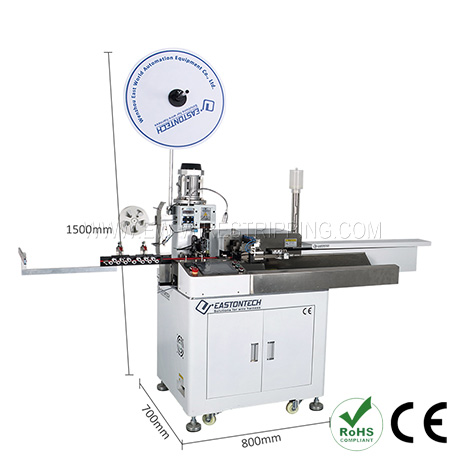

    Dimension

    1210*770*1370mm
