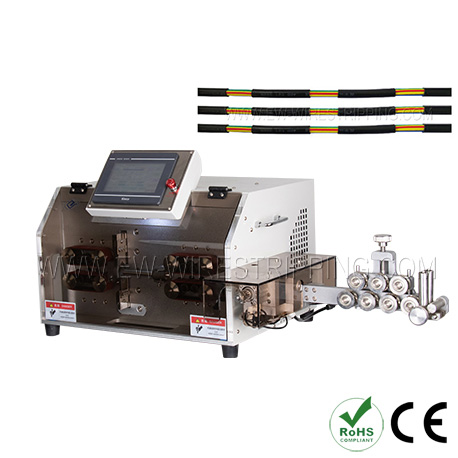

Wire Cutting And Stripping Machine+Middle Stripping
Eco-cut&Strip
Technical Data
|
Model |
EW-05F+M |
EW-05F-1+M |
|
Conductor cross-section |
1 - 30 mm² |
|
|
Core wire stripping |
2-11 cores |
Not available |
|
Cutting length |
1 - 99999.99 mm |
|
|
Cutting length tolerance |
0.002 * L (L = cutting length) |
|
|
Stripping length (side I) |
Out jacket: 10 - 99999.99 mm Inner core: 1-50mm |
Full stripping: 10 - 99999.99 mm Half stripping: 1 - 99999.99 |
|
Stripping length (side II) |
Out jacket: 10 - 99999.99 mm Inner core: 1 - 50 mm |
Full stripping: 10 - 99999.99 mm Half stripping: 1 - 99999.99 mm |
|
Max. Window position |
32 |
|
|
Maximum guide tube diameter |
16 mm |
|
|
Productivity |
600 pcs./h 400 pcs./h(multi-conductor cable) |
600 pcs./h |
|
Blade material |
Imported high speed steel |
|
|
Display mode |
7-inch touch screen |
|
|
Driving mode |
16-wheel driving, silent hybrid servo motor |
|
|
Feeding mode |
By belts |
|
|
Remarks |
Special application can be customized by sending samples |
|
Feature

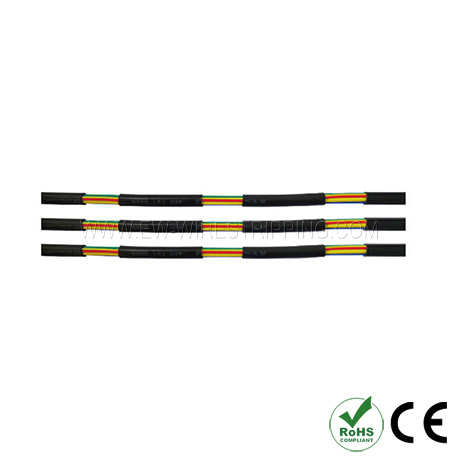

The EW-05F+M is designed for long wire middle strip (window strip) with max. 32 window positions.
1. Powered by hybrid servo motor, the productivity is maximized to 600 pcs./h (400 pcs./h multi-core cable).
2. Custom guide tube for each size wire.
3. Intuitive middle strip program.
4. Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
5. The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
6. Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).
Application Range
More Info
Model：Wire Cutting And Stripping Machine+Middle Stripping
Model: EW-05F+M
Conductor cross-section: 1 - 30 mm2
Core wire stripping: 2 - 6 cores
Cutting length: 1 - 99999.99 mm
Conductor cross-section: 1 - 30 mm2
Core wire stripping: 2 - 6 cores
Cutting length: 1 - 99999.99 mm
