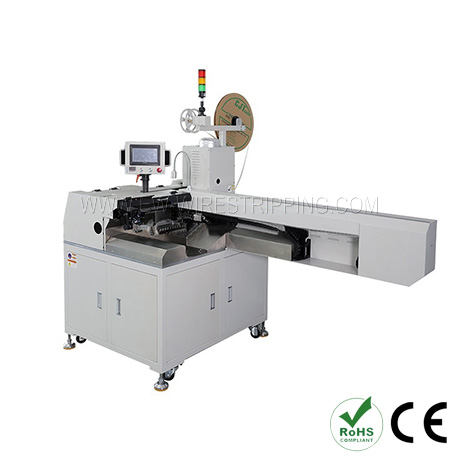

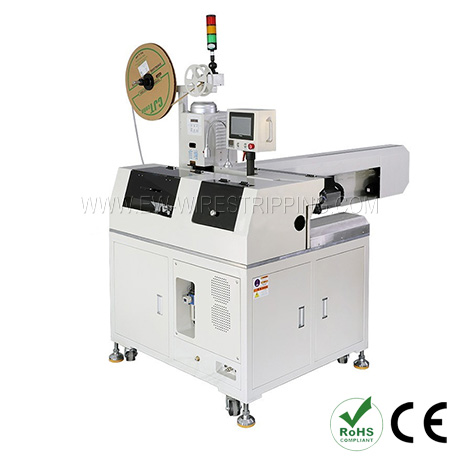

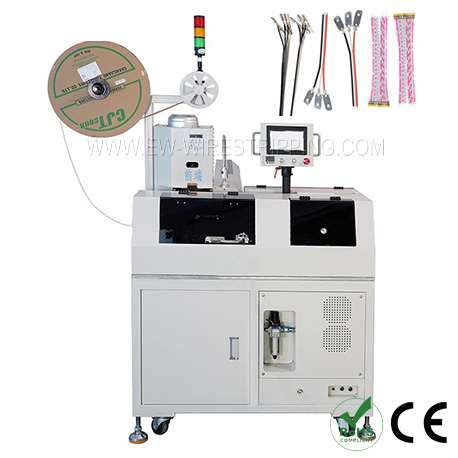

Model：Flat Ribbon Cable Stripping Crimping and Tin Soldering Machine

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-8045
Applicable  wire  range:AWG18-AWG28/FFC:  AWG30-AWG18
Cutting  length:45-1000mm
Stripping  length:Front  Side:  0-5mm;
                                  Rear  Side:  0-10mm
Tinning  length:2-8mm
Max.  Wire  width:24mm
Max.  Wire  Pins:24P
Productivity:700pcs/hour(12P)
ENQUIRE NOW!
Video Specifications

  • This is a fully automatic ribbon cable stripping crimping and tin soldering machine,one side stripping and crimping.Another side twisting and tin soldering.The ribbon cable slitter is able to slit the ribbon cables automatically. the slitting length can be set in program freely. It is also suitable for processing normal electronic wires, it can process more than 5 wires at a time, the production efficiency is very high.

  •

    Model

    EW-8045

    Applicable wire range

    AWG18-AWG28/FFC: AWG30-AWG18

    Cutting length

    45-1000mm

    Stripping length

    Front Side: 0-5mm; Rear Side: 0-10mm

    Tinning length

    2-8mm

    Max. Wire width

    24mm

    Max. Wire Pins

    24P

    Crimping force

    2.0T

    Productivity

    700pcs/hour(12P)

    Air pressure

    0.4-0.6Mpa

    Power /Power Rating

    220V/110V/50HZ/60HZ /4000W

    Rating

    15AL

    Weight

    500Kg

    Dimension

    1937*1400*1825mm
