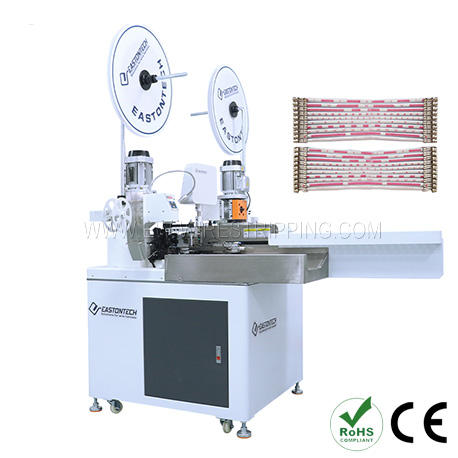

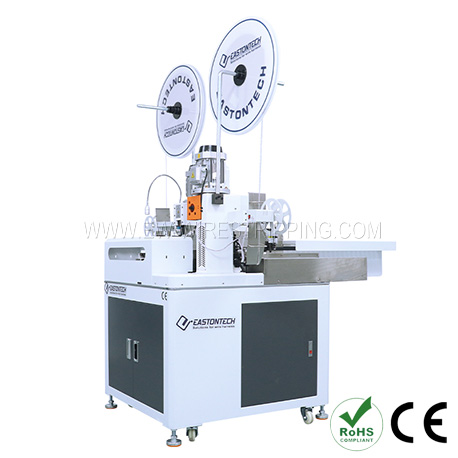

Model：Fully Automatic Double End Flat Cable Crimping Machine

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-8065
Applicable  wire  range:AWG18-AWG28
Cutting  length:60-1000mm
Stripping  length:1.0-10mm
Single  line  width:0.6-2.5mm
Max.  Wire  width:28mm
Max.  Wire  Pins:20P
Crimping  force:2.0T
Productivity:900pcs/hour(10P)
ENQUIRE NOW!
Video Specifications

  • Special functions: single head, double head, interval, positive and negative, mold replacement, replacement end die machine warranty for one year (except blade). High production efficiency: 10P line L=100mm can produce 700-900 products per hour, terminal position 15000-22000 PCS, depending on wire type.

  •

    Model

    EW-8065

    Applicable wire range

    AWG18-AWG28

    Cutting length

    60-1000mm

    Stripping length

    1.0-10mm

    Single line width

    0.6-2.5mm

    Max. Wire width

    28mm

    Max. Wire Pins

    20P

    Crimping force/Applicator

    2.0T/ Horizontal applicator

    Productivity

    900pcs/hour(10P)

    Air pressure

    0.4-0.6Mpa

    Power supply

    220V/110V/50HZ/60HZ

    CFM

    Optional

    Weight

    450Kg

    Dimension

    1880*1000*1550mm
