2T-50T Servo Motor Terminal Crimping Machine
Electrical
Model：2T-50T Servo Motor Terminal Crimping Machine
Model:EW-5140
Crimping Force:2T-50T
Stroke:30mm/40mm
Crimping Force:2T-50T
Stroke:30mm/40mm
Technical Data
|
Model |
Motor Power |
Stroke |
Crimping Force |
Gross Weight |
Packing Size |
Power Supply |
|
EW-5140-2T |
750W |
30/40mm |
2T / 20KN |
38KGS |
280*240*600mm |
220V,50HZ/60HZ |
|
EW-5140-3T |
1500W |
30/40mm |
3T / 30KN |
62KGS |
350*320*640mm |
220V,50HZ/60HZ |
|
EW-5140-4T |
1500W |
30/40mm |
4T / 40KN |
65KGS |
350*320*640mm |
220V,50HZ/60HZ |
|
EW-5140-6T |
1500W |
30/40mm |
6T / 60KN |
132KGS |
400*380*740mm |
220V,50HZ/60HZ |
|
EW-5140-8T |
2300W |
30/40mm |
8T / 80KN |
135KGS |
400*380*740mm |
380V,50HZ |
|
EW-5140-10T |
2300W |
30/40mm |
10T / 100KN |
138KGS |
400*380*740mm |
380V,50HZ |
|
EW-5140-15T |
3600W |
40mm |
15T / 150KN |
350KGS |
520*540*980mm |
380V,50HZ |
|
EW-5140-20T |
5500W |
40mm |
20T / 200KN |
360KGS |
520*540*980mm |
380V,50HZ |
|
EW-5140-30T |
7500W |
40mm |
30T / 300KN |
360KGS |
520*540*1030mm |
380V,50HZ |
|
EW-5140-40T |
7500W |
40mm |
40T / 400KN |
360KGS |
520*540*1030mm |
380V,50HZ |
|
EW-5140-50T |
7500W |
40mm |
50T / 500KN |
360KGS |
520*540*1030mm |
380V,50HZ |
Feature
·This machine is mainly aimed at the pressing of the large square pipe terminal.
·The industrial control chip is combined with high precision servo drive, so that the machine can run steadily.
· PLC control system, store the program for different size wire ,directly use by choosing the program number , no need manual adjustment.

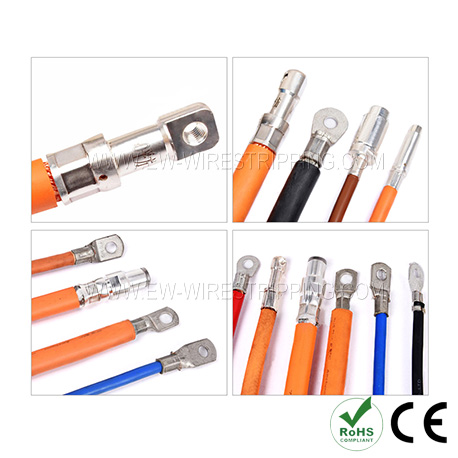

Application Range
