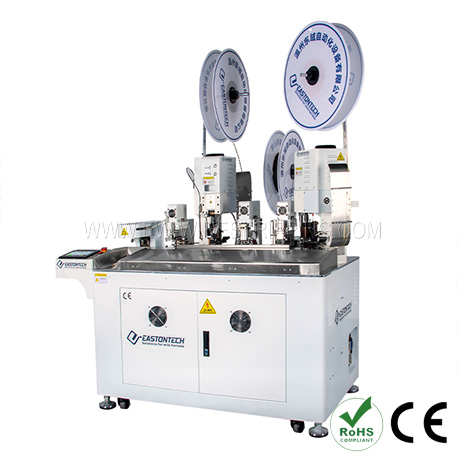

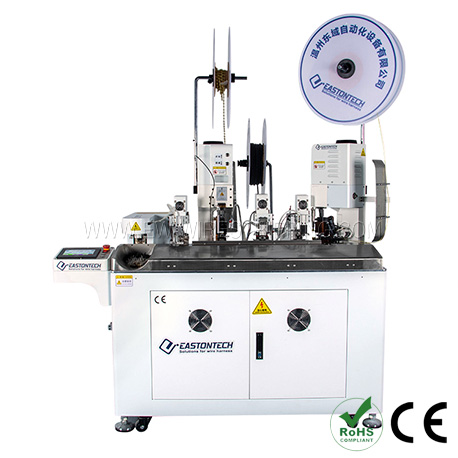

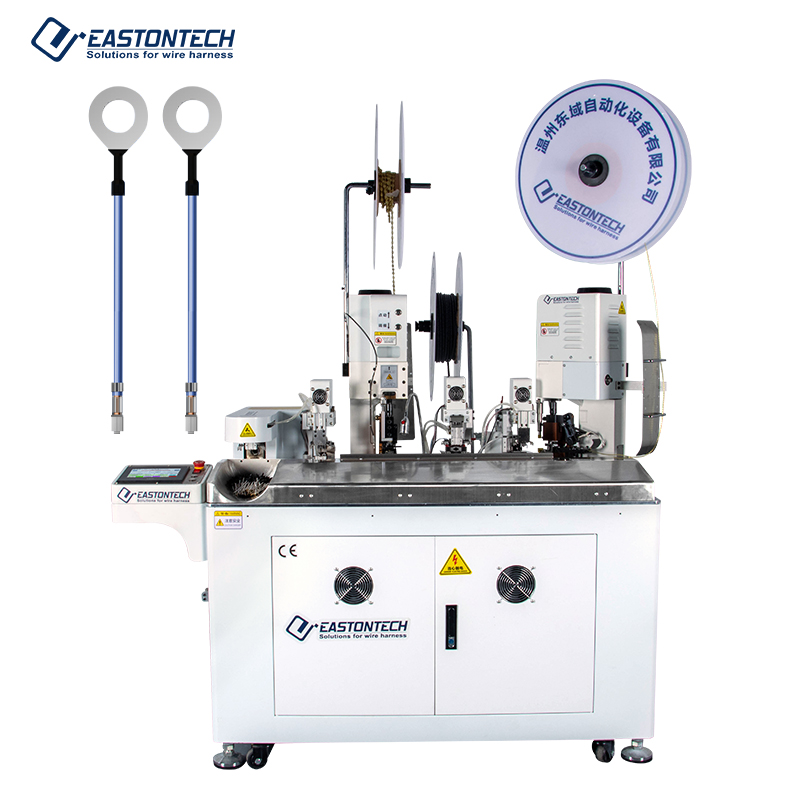

Automatic Double End Terminal Crimping Single End Inserting Heat Shrink Tube Machine

Cut Strip Terminate& Solder

Model:Automatic Double End Terminal Crimping Single End Inserting Heat Shrink Tube Machine
Share to:
Model:EW-8070
Applicable  wire  range:AWG22-AWG14
Stripping length:Front:  0.5-8mm;  Rear:  0.1-10mm
Cut  precision:±(0.5+0.002*L)  mm,  L=cut  length
Cutting  length:86-9999mm
Capacity:2000pcs/hour(L=80-100mm)
Crimping  force:2.0T
Applicators:30mm  or  40mm  strokes  for  optional
Air  pressure:0.5Mpa

Technical Data

Model EW-8070
Applicable wire range AWG22-AWG14
Stripping length Front: 0.5mm; Rear: 0.1-10mm
Cut precision ±(0.5+0.002*L) mm, L=cut length
Cutting length 86-9999mm
Capacity 2000pcs/hour(L=80-100mm)
Crimping force 2.0T
Applicators 30mm or 40mm strokes for optional
Air pressure 0.5Mpa
Detection Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power 220V/110V/50/60HZ
Cutting depth The maximum adjustment is 5.50mm and the resolution is 0.01mm.
Shrinkage tube size 3.0-6.0mm Dia(12-18mm length)

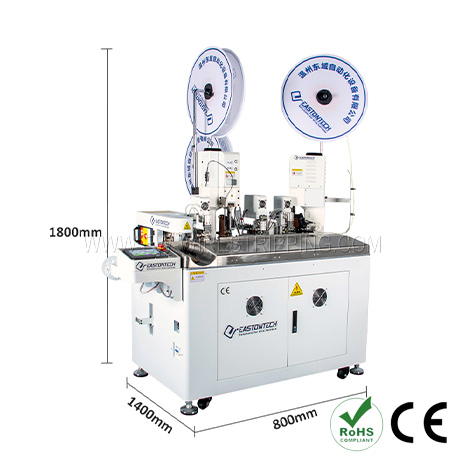

Dimension 800*1400*1800mm
Weight 500Kg
Power cord plug European, USA, Chinese plug

Feature

This is a fully automatic heat shrinkable tube terminal machine, which inteqrates functions such as wire cutting, wire striping double-head crimping terminals, and single side insertion into heat-shrinkable tubes.The coil-mounted heat-shrinkable tube can be cut to a fixed length. After the wire is cut and stripped, the heat-shrinkable tube is inserted into the wire. After the terminal crimping is completed, the heat-shrinkable tube is automatically pushed onto the terminal, and the heat-shrinkable tube is heated and shrunk in place by the automatic heating device. in addition, laser marking or coding functions can be selected to realize automatic printing of characters on heat shrinkable tubes.

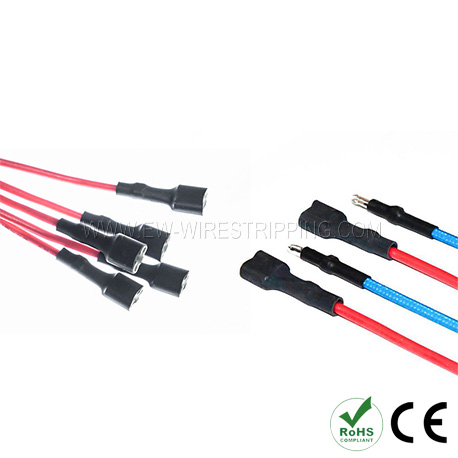

Application Range
