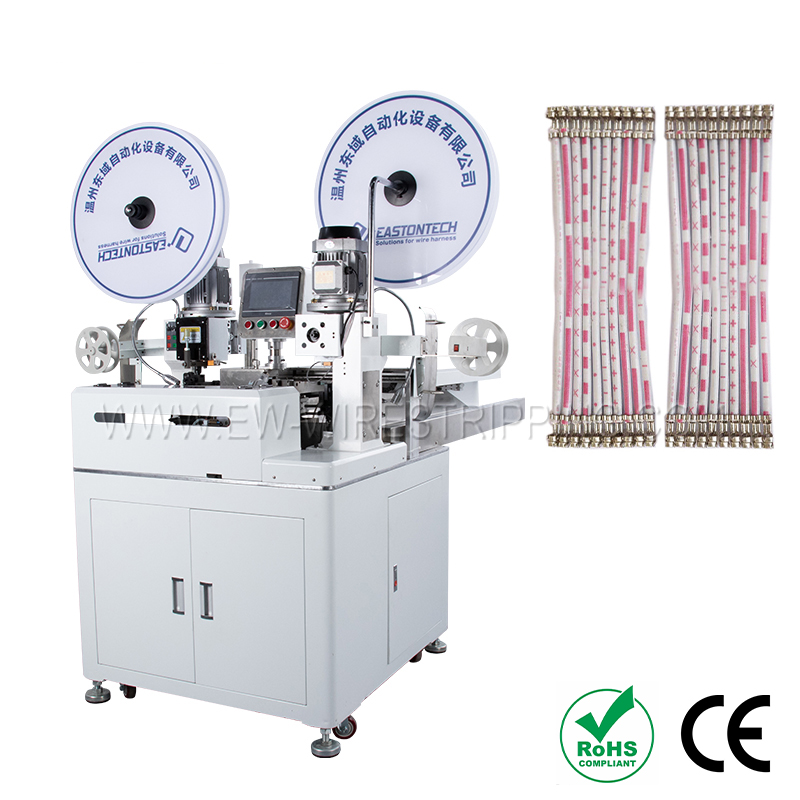

Fully Automatic Flat Ribbon Wire Crimp/Solder Machine(Double Head)
Cut Strip Terminate& Solder
Technical Data
| Model | EW-8080 |
| Applicable wire range | AWG16-AWG32， Flat cable 2P-20P |
| Cutting length | 30-1000mm; Flat cable 60-1000mm |
| Stripping length | 1.0-10mm |
| Single line width | 0.6-2.5mm |
| Line split | 27-35mm |
| Max. Wire Pins | 20P |
| Crimping force | 2.0T |
| Productivity | 5000-6000pcs/hour(L=100mm);900pcs/hour(10P,100mm) |
| Air pressure | 0.5-0.7Mpa |
| Power supply | 220V/110V/50HZ/60HZ |
| CFM | Optional |
| Weight | 550Kg |
| Dimension | 1880*1000*1550mm |
| Function | Double side crimping;one side crimping, one side half strip/full strip/tinning |
Feature
Special functions: 1. Double side crimping; 2. one side crimping, one side half strip/full strip/tinning. High production efficiency: 10P line L=100mm can produce 700-900 products per hour, terminal position 15000-22000 PCS, depending on wire type, length.
Application Range
More Info
Model：Fully Automatic Flat Ribbon Wire Crimp/Solder Machine(Double Head)
Model:EW-8080
Applicable wire range:AWG16-AWG32
Flat cable 2P-20P
Cutting length:30-1000mm; Flat cable 60-1000mm
Stripping length:1.0-10mm
Single line width:0.6-2.5mm
Line split:27-35mm
Max. Wire Pins:20P
Crimping force:2.0T
Productivity:5000-6000pcs/hour(L=100mm);900pcs/hour(10P,100mm)
Applicable wire range:AWG16-AWG32
Flat cable 2P-20P
Cutting length:30-1000mm; Flat cable 60-1000mm
Stripping length:1.0-10mm
Single line width:0.6-2.5mm
Line split:27-35mm
Max. Wire Pins:20P
Crimping force:2.0T
Productivity:5000-6000pcs/hour(L=100mm);900pcs/hour(10P,100mm)
