Applicable wire range:0.3-6mm2 (AWG9-AWG23)
Cutting length:60-99999mm
Stripping length:0.1-18mm
Crimping force:3.0Ton
Crimping Stroke:30mm or 40mm
Feeding speed:Max. 8.0m/s
Productivity:4500~ 5000 pcs/hour
Air pressure:0.5-0.7Mpa

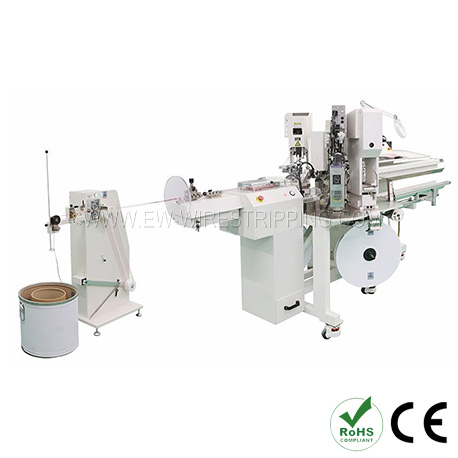

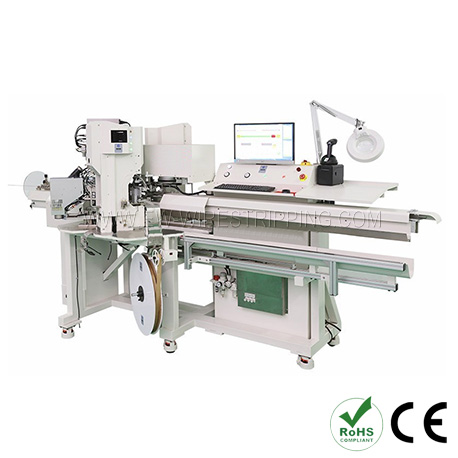

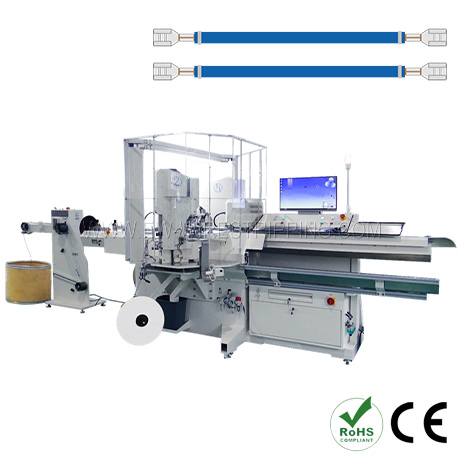

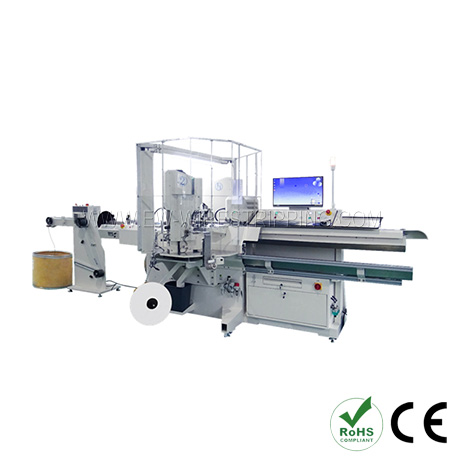

1.EW-8075 is one of our newest wire pocssing equipment, the wire cross secton range extends from 0.3mm2 to 6mm2. With the touch screen, keyboard and mouse, it can be operated in a time-saving and ergonomic fashion.

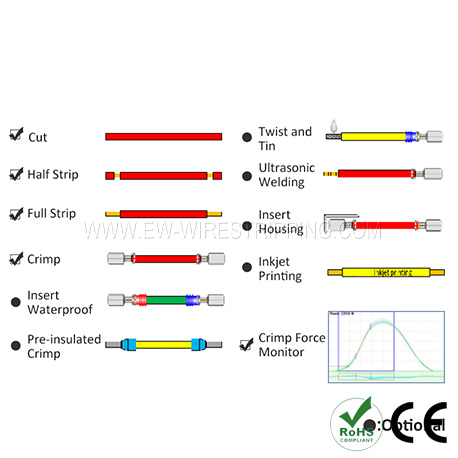

2.Crimp height can be set in program diretly, there is no need to adjust any screws to modify the crimping height. Crimp force monitor is integrated in the machine, the processes are constantly checked against the specified values during prodution.3. The waterproof sealing function is optional, we can add the sealing function on one or both ends.
4. This machine adopts FP2 RTX internet bus system, the operation interface is simple and easy to understand, all parameters can be easily set and accessed.
Model
EW-8075
Applicable wire range
0.3-6mm2 (AWG9-AWG23)
Cutting length
60-99999mm
Stripping length
0.1-18mm
Crimping force
3.0Ton
Crimping Stroke
30mm or 40mm stroke both available
Wire collection
2m-4m( Can be customized)
Feeding speed
Max. 8.0m/s
Productivity
4500~ 5000 pcs/hour (depend on wire cutting length)
Air pressure
0.5-0.7Mpa
Stripping/Cutting accuracy
士(0.002mm*Stripping Length/Cutting length)
Detection function
Non-wire, crimp detect, pressure(to be installed with press sensor)
Power supply
220V/110V/50HZ/60HZ
CFM
Optional
Weight
1100Kg 1800W
Dimension
3500*1200*1700mm
