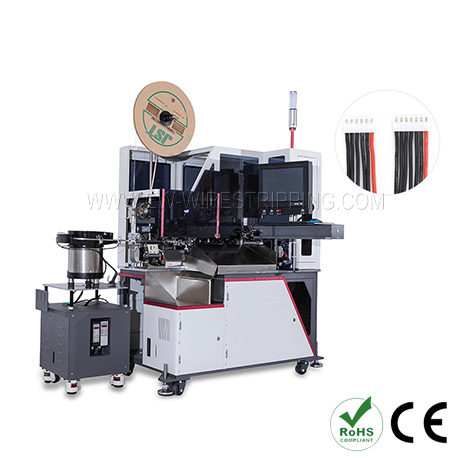

Automatic Single End Wire Soldering Crimping and Insertion Machine
Cut Strip Terminate& Solder
2999
Model：Automatic Single End Wire Soldering Crimping and Insertion Machine
Model:EW-22H
Wire range:AWG30-AWG18
Stripping length:Side A:1-12.5mm, Side B:1-7mm
Cut precision:0.2±0.002*L
Cutting length:25-600mm
Twisting length:2-15mm
Air pressure:0.5-0.7Mpa
Capacity"1100-1500pcs/hour
Tinning depth:1-15mm
Wire range:AWG30-AWG18
Stripping length:Side A:1-12.5mm, Side B:1-7mm
Cut precision:0.2±0.002*L
Cutting length:25-600mm
Twisting length:2-15mm
Air pressure:0.5-0.7Mpa
Capacity"1100-1500pcs/hour
Tinning depth:1-15mm
Technical Data
| Model | EW-22H |
| Wire range | AWG30-AWG18 |
| Stripping length | Side A:1-12.5mm, Side B:1-7mm |
| Cut precision | 0.2±0.002*L |
| Cutting length | 25-600mm |
| Twisting length | 2-15mm |
| Air pressure | 0.5-0.7Mpa |
| Capacity | 1100-1500pcs/hour |
| Tinning depth | 1-15mm |
| CFM | Optional |
| Power | 220V/110V/50/60HZ |
| Weight | 750KGS |
| Machine size | 2300*1200*1370mm |
| Servo system | Mitsubishi |
| Solenoid valve | SMC |
| Module lead Screw | THK |
Feature
1. All motors adopt hich-precision servo motors, and the components are made with precision.
2. . The machine can both side crimping and one side inserting. Up to 6 rollers of different colors wires can be hung on a 6 station wire prefeeder. The order and length of each color of wire can be specified in the program.The wire can be crimped, inserted and then fed by the vibration plate automatically. The crimping force monitor can be customized according to production requirements.
3. Color LCD touch screen operation interface, the parameters are intuitive and easy to understand:
4. Equipped with MITSUBISH servo motors and SMC pneumatic cylinders, so the wire cutting, stripping,crimping, tin soldering and inserting housing positions can be precisely controlled:
