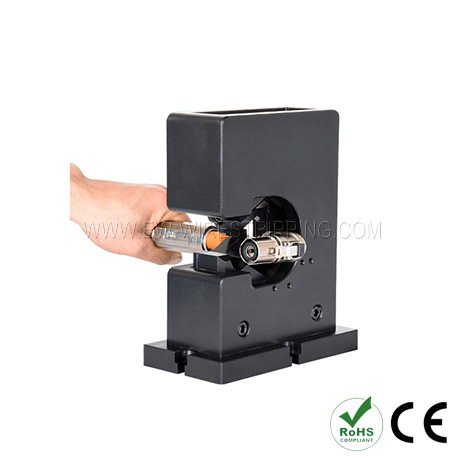

Model：Open Hexagon Crimping Die&Applicator(10-120mm2)
Scan the QR code
Model:EW-09H003
Crimping range: 10-120mm2
Stroke:0-60mm
Blade thickness:3-15mm/10-30mm
Crimping range: 10-120mm2
Stroke:0-60mm
Blade thickness:3-15mm/10-30mm
Applicable equipment:
·15T/30T servo terminal crimping machine.
·pneumatic hydraulic connecting machine.
·silent terminal machine above 8T.
·electric punching machine...
Model
EW-09H003-1
EW-09H003-2
Crimping accuracy
±0.03mm
±0.03mm
Number of crimping
≧300,000 times
≧300,000 times
Crimp shape
hexagon
hexagon
Crimping range
10-120mm2
10-120mm2
Stroke
0-60mm
0-60mm
Blade thickness
5-15mm
10-30mm
Dimensions
188*100*250mm
188*100*250mm
N.W.
16.5KGS
16.5KGS
