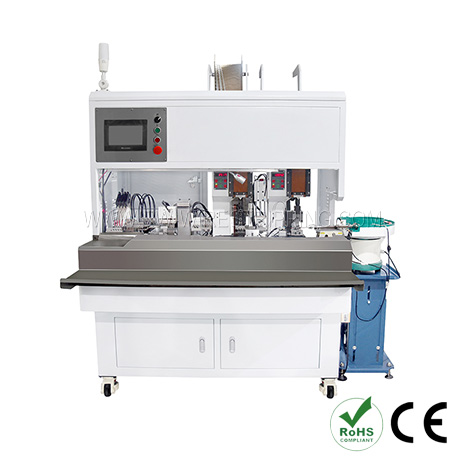

3 / 4 core 3T Muli Funtional Loose Piece Ferrule Crimp Machine
Electrical
2639
Model：3 / 4 core 3T Muli Funtional Loose Piece Ferrule Crimp Machine
Model:EW-5085
Stripping Length:0-15mm
Crimping Force:3T
Cutting Length Difference:0-200mm
Stripping Length:0-15mm
Crimping Force:3T
Cutting Length Difference:0-200mm
Technical Data
| Model | EW-5085 |
| Applicable | 3 or 4 core sheathed wire |
| Cutting Length Difference | 0-200mm |
| Cutting Precision | ±0.1（0.1＋0.005*L）mm，L=cutting length |
| Stripping Length | 0-15mm |
| Crimping Force | 3T |
| Capacity | 3core:500-550pcs/h, 4 core:450-500pcs/h |
| Power Supply | AC220/110V/50/60HZ |
| Machine Size | 1500*970mm*1700mm |
| Weight | 550KGS |
Feature

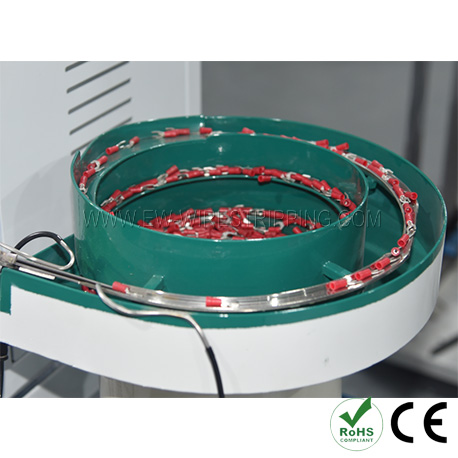

●Vibratory feeding system,easy and fast feeding for bulk terminals.

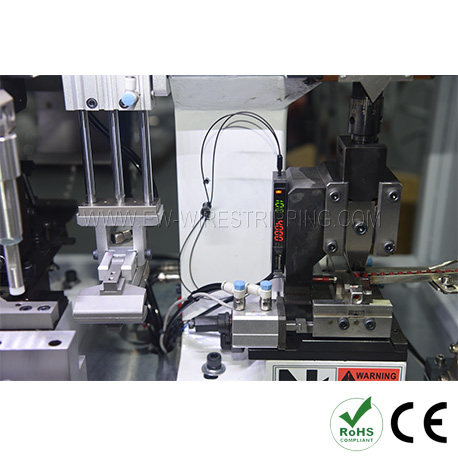

●Feeding,stripping and crimping at same time.
●Adopt Mitsubishi servo motor , more Accurate.

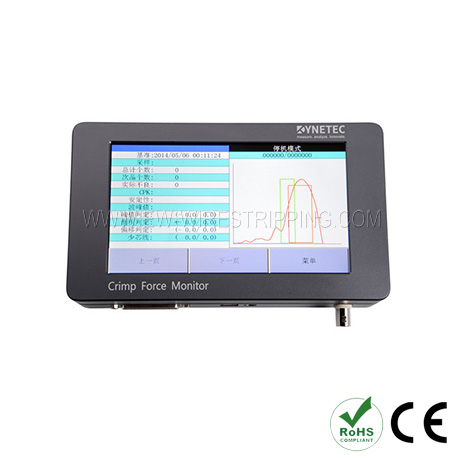

●CFM can be installed ,control the defective products.

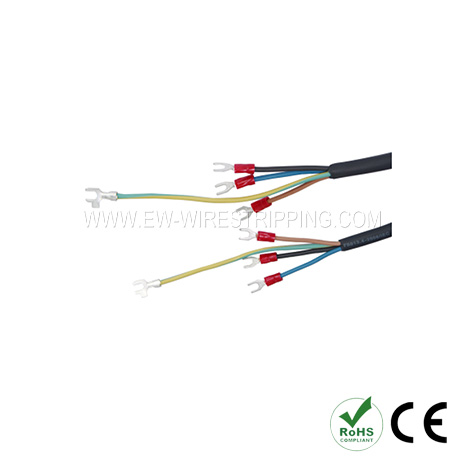

Application Range
