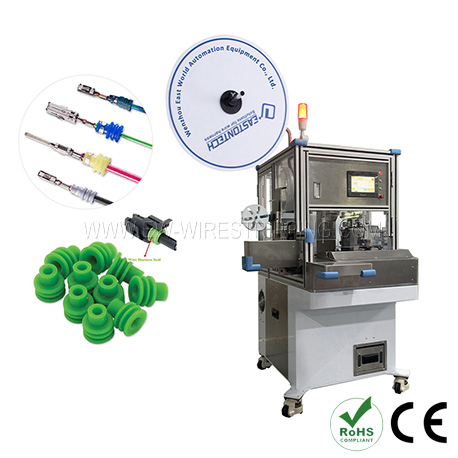

Model:Semi-Automatic Double Wire Waterproof Plug Stripping Plus Crimping Terminal Machine

Scan the QR code

Share to:
  • 刷新
Model:  EW-8090
Applicable  wire  diameter:  0.2-2.5mm  2
Stripping  length:0.1mm-10mm
Tangent  error:  ±0.02mm
Crushing  ability:  2T
Air  source:  0.5-0.7MPA
Body  size:  850*880*1300mm
  • 1. Stripping length can be adjusted by data. Wear waterproof plug depth, adjusted according to the data of the glue position between the stripping and the waterproof plug.

    2. The depth of the end rubber can also be adjusted according to the position of the top line.

    3. Machine is driven by high-efficiency servo motor, high-speed stamping and pressure stability.

    4.The peeling slide is driven by a screw rod to ensure accurate stripping length.

    5. The cutting mechanism is driven by a motor and screw, and the tangent data can be adjusted.

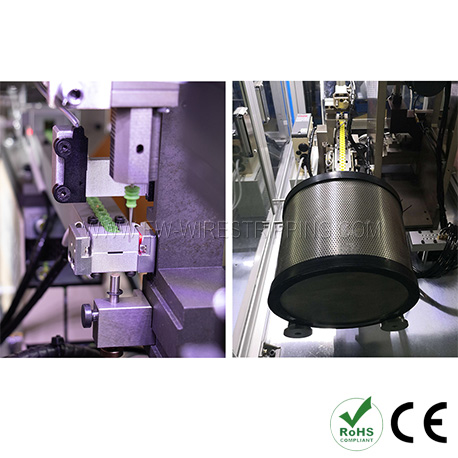

    6. Waterproof plug feeding mechanism, easy to replace, to meet the needs of customers with more products and more types

  • Model

    EW-8090

    Applicable wire range

    0.2-2.5mm2

    Stripping length

    0.1-10mm

    Cut precision

    ±0.02 mm

    Stroke

    40mm

    Crimp capacity

    2.0T, servo crimp

    Power

    220V/110V/50/60HZ

    Display language

    Chinese/English

    Compressed air

    0.5-0.7MPA

    External dimensions

    850mm*880mm*1300mm (length, width and height)

    Weight

    300KG

    CFM

    Optional

    Waterproof plug size

    ≤10*10mm
