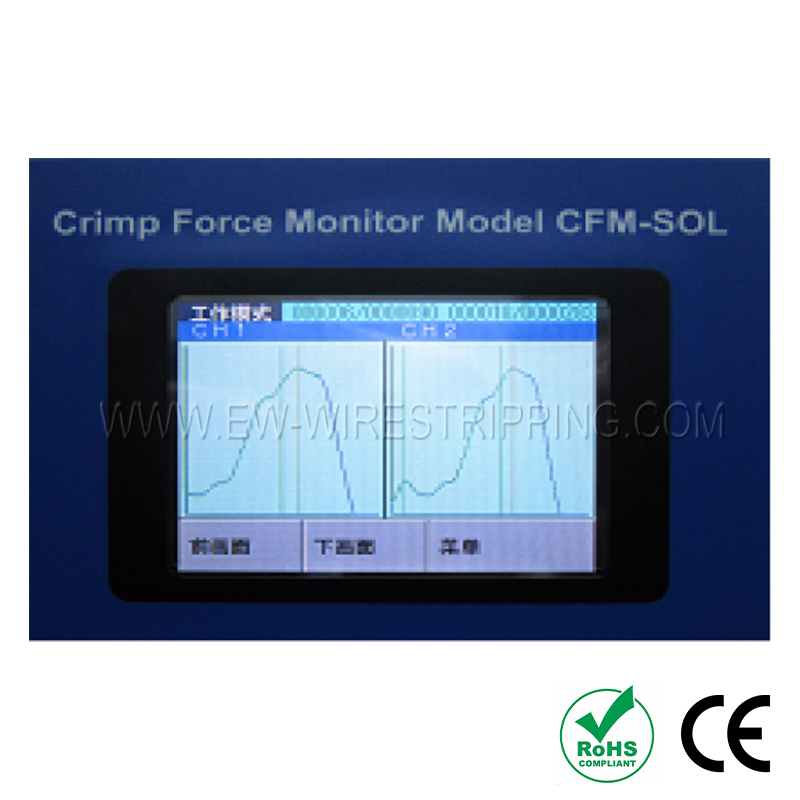

Crimp monitors
Wire Harness Tester
2510
Model：Crimp monitors
Model:EW-2530
Enter:Trigger signal
Channel number:1CH;2CH
Communication:USB 1ch(Built-in 232 port converted to USB)
Measurement interval:0.4 seconds
Enter:Trigger signal
Channel number:1CH;2CH
Communication:USB 1ch(Built-in 232 port converted to USB)
Measurement interval:0.4 seconds
Technical Data
| Model | EW-2530 | EW-2530-1 |
| Channel number | 1CH | 2CH |
| Communication | USB 1ch(Built-in 232 port converted to USB) | USB 1ch(Built-in 232 port converted to USB) |
| Measurement interval | 0.4 seconds | 0.4 seconds |
| Test result | Stop signal when defective product is judged | Good product signal (EJECT) Stop signal when defective product is judged |
| Power supply | AC100-AC240 50/60Hz | AC100-AC240 50/60Hz |
| LCD | Color LCD (with touch screen) | Color LCD (with touch screen) |
| Enter | Trigger signal | Trigger signal |
Feature
● History record management: The device saves the latest 500 defective product waveforms and data, and can instantly confirm the deviation of the waveform data.
● Various functions of the standard software: communicate with the computer via USB, not only can observe the waveform on the computer, save and view the historical data, but also find the best through the historical analysis the tolerance setting value.
Application Range
