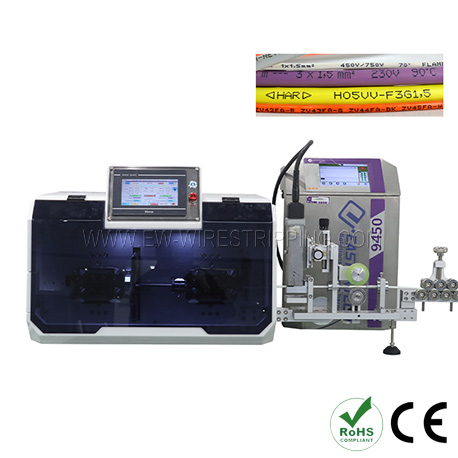

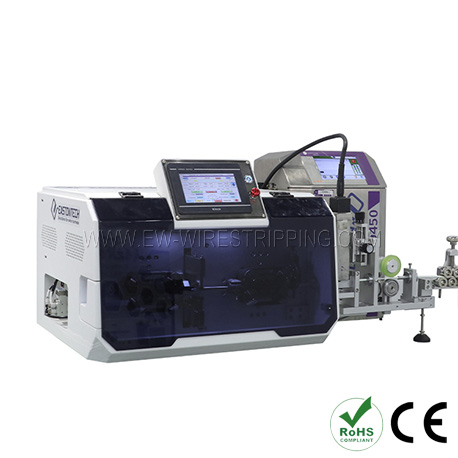

Model:Cable Cutting & Stripping Machine with Ink-jet Printer

Scan the QR code

Share to:
  • 刷新
Model:  EW-05F+P
Conductor  cross-section:  1  -  30  mm²
Core  wire  stripping:  2-6  cores
Cutting  length:  1  -  99999.99  mm
Cutting  length  tolerance:  0.002  *  L  (L  =  cutting  length)

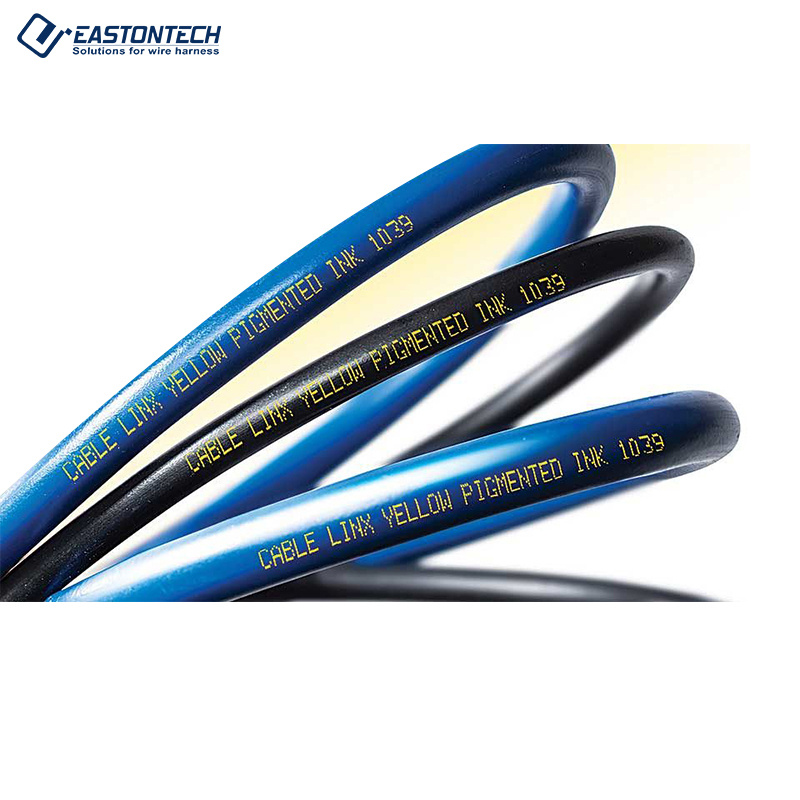

Ink-jet  printing:  various  options

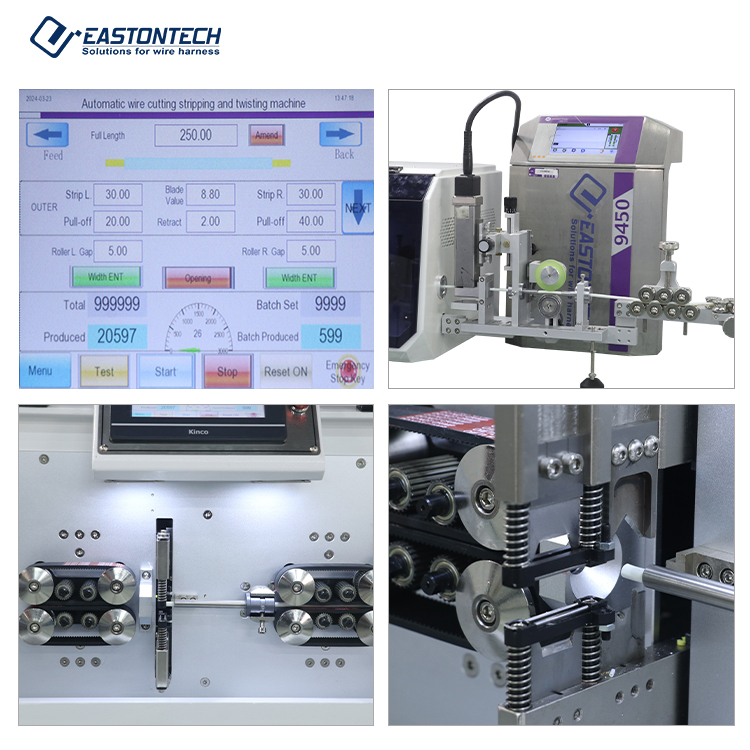

  • ● The EW-05F+P integrates cutting, stripping and marking functions.

    ● The marking position can be freely set in the program.

  • Model

    EW-05F+P

    EW-05F-1+P

    Conductor cross-section

    1 - 30 mm²

    1 - 30 mm²

    Core wire stripping

    2-11 cores

    Not available

    Cutting length

    1 - 99999.99 mm

    1 - 99999.99 mm

    Cutting length tolerance

    0.002 * L (L = cutting length)

    0.002 * L (L = cutting length)

    Stripping length (side I)

    Cable jacket

    ● Full strip: 1 - 120 mm

    ● Half strip: 1 - 1000 mm

    Core wire

    ● Full strip: 1 - 120 mm

    ● Half strip: 1 - 120 mm

    Full strip: 1 - 120 mm

    Half strip: 1 - 1000 mm

    Stripping length (side II)

    Cable jacket

    ● Full strip: 1 - 80 mm

    ● Half strip: 1 - 350 mm

    Core wire

    ● Full strip: 1 - 80 mm

    ● Half strip: 1 - 80 mm

    Full strip: 1 - 80 mm

    Half strip: 1 - 350 mm

    Ink-jet printing

    Various options for different applications

    Maximum guide tube diameter

    16 mm

    16 mm

    Productivity

    600 pcs./h, cutting length = 100 mm

    400 pcs./h(multi-conductor cable)

    600 pcs./h, cutting length = 100 mm

    Blade material

    Imported high speed steel

    Imported high speed steel

    Display mode

    7-inch touch screen

    7-inch touch screen

    Driving mode

    16-wheel driving, silent hybrid stepping motor, servo blades seat

    16-wheel driving, silent hybrid stepping motor, servo blades seat

    Feeding mode

    By belts

    By belts

    Remarks

    Special application can be customized by sending samples
