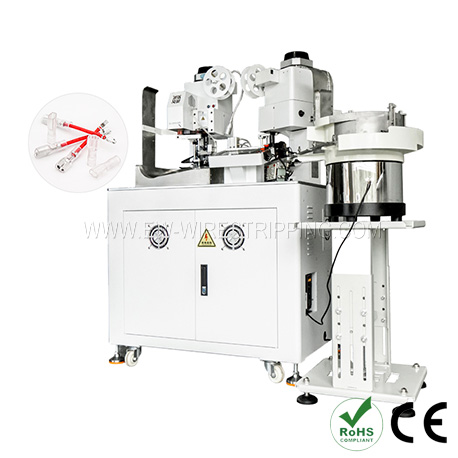

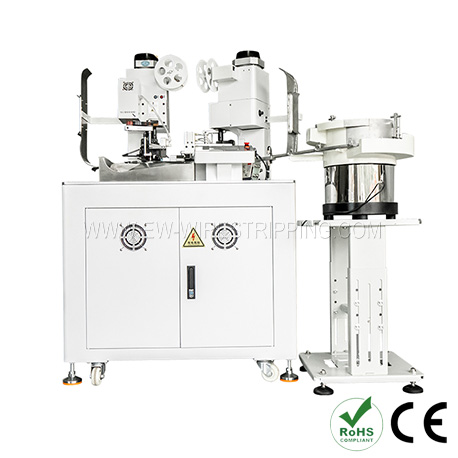

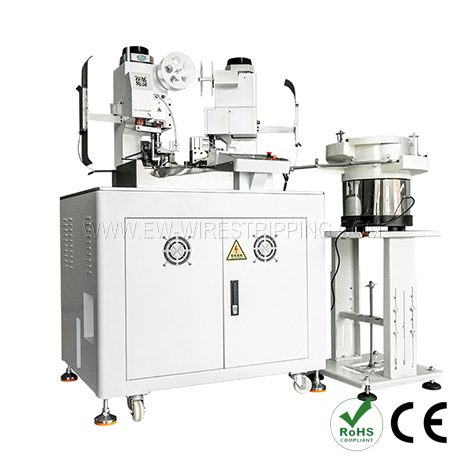

Fully Automatic Double Head Terminal Crimping Sheath Inserting Machine
Cut Strip Terminate& Solder
2528
Model：Fully Automatic Double Head Terminal Crimping Sheath Inserting Machine
Model:EW-8095
Applicable wire range:AWG24-AWG16
Stripping length:0-15mm
Cut precision:±2%
Cutting length:50-9900mm
Capacity:1700pcs/hour (L≤300mm)
Crimping force:2.0T-3.0T
Stroke:30mm
Air pressure:0.5-0.7Mpa

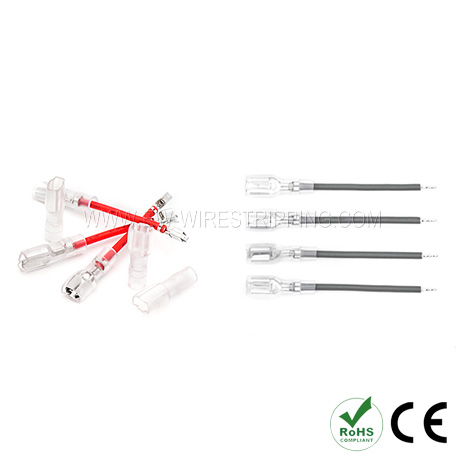

Adapter sheath:187, 250, 110 and other straight pipe type sheath
Applicable wire range:AWG24-AWG16
Stripping length:0-15mm
Cut precision:±2%
Cutting length:50-9900mm
Capacity:1700pcs/hour (L≤300mm)
Crimping force:2.0T-3.0T
Stroke:30mm
Air pressure:0.5-0.7Mpa
Adapter sheath:187, 250, 110 and other straight pipe type sheath
Technical Data
Model:EW-8095
Applicable wire range:AWG24-AWG16
Stripping length: 0-15mm
Cut precision: ±2%
Cutting length: 50-9900mm
Capacity: 1700pcs/hour (L≤300mm)
Crimping force: 2.0T-3.0T
Stroke: 30mm
Air pressure: 0.5-0.7Mpa
Adapter sheath:187, 250, 110 and other straight pipe type sheath
Function: It can automatically complete cutting , stripping, wearing sheath and crimping
Power: 220V/110V/50/60HZ
Dimension: 750*1000*1600mm
Weight: 350Kg
Options: CCD visual Inspection; CFM
Applicable wire range:AWG24-AWG16
Stripping length: 0-15mm
Cut precision: ±2%
Cutting length: 50-9900mm
Capacity: 1700pcs/hour (L≤300mm)
Crimping force: 2.0T-3.0T
Stroke: 30mm
Air pressure: 0.5-0.7Mpa
Adapter sheath:187, 250, 110 and other straight pipe type sheath
Function: It can automatically complete cutting , stripping, wearing sheath and crimping
Power: 220V/110V/50/60HZ
Dimension: 750*1000*1600mm
Weight: 350Kg
Options: CCD visual Inspection; CFM
Feature
●This machine adopts imported top-level configuration: Japan Mitsubishi PLC control, servo motor, man-machine interface, Japan SMC pneumatic components, Japan THK track, Japan Xinbao reducer, Japan Omron and Keyence sensor.
●Double-head cutting and stripping single-head wearing waterproof plug double-headed terminal, wearing pull sheath, peeling, cutting strip,easy to operate.
●With stripping abnormality, pressing abnormality, air pressure anomaly detection device, to achieve true full automation. Speed up to 1700 / hour.
●Double-head cutting and stripping single-head wearing waterproof plug double-headed terminal, wearing pull sheath, peeling, cutting strip,easy to operate.
●With stripping abnormality, pressing abnormality, air pressure anomaly detection device, to achieve true full automation. Speed up to 1700 / hour.
