Applicable wire range:AWG26-AWG12
Stripping length:0-15mm
Cut precision;±(0.5+0.002*L) mm, L=cut length
Cutting length:45-9999mm
Capacity:3500pcs/hour(L=300mm)
Crimping force:2.0T
Air pressure:0.4-0.6Mpa

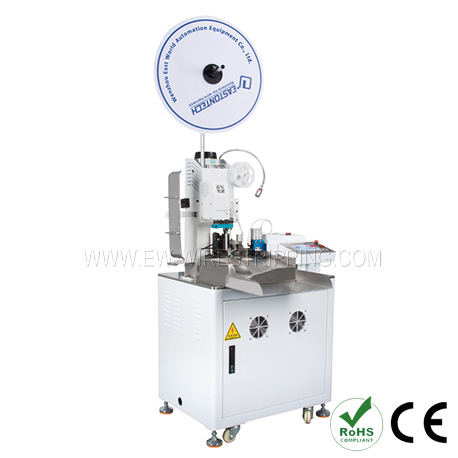

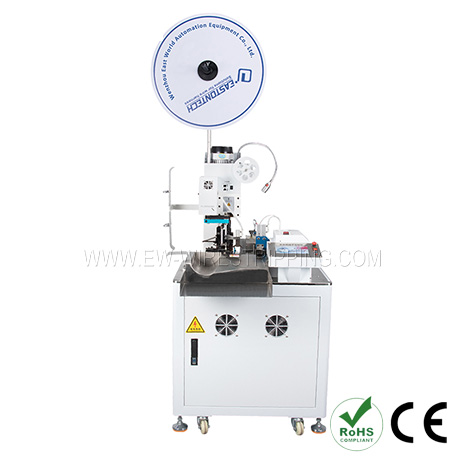

·This is a fully automatic single end wire cutting stripping and crimping machine for AWG28~AWG12.
·The highly flexible and electronically ontrolled benchtop unit accepts most universal or mini-style applicators for crimping both side-feed and rear-feed open barrel terminals.
·You can also save you settings in a program file number, so that you can call it out easily next time.
Model
EW-8100
EW-8100-1
Applicable wire range
AWG26-AWG12
AWG26-AWG12
Stripping length
1-15mm
1-15mm
Cut precision
±(0.5+0.002*L) mm, L=cut length
±(0.5+0.002*L) mm, L=cut length
Cutting length
45-9999mm
45-9999mm(With twist)
Capacity
3500pcs/hour
3500pcs/hour
Twisting function
N/A
Yes
Twisting length
3-12mm
Crimping force
2.0T
2.0T
Applicators
30mm or 40mm strokes for optional
30mm or 40mm strokes for optional
Air pressure
0.4-0.6Mpa
0.5-0.7Mpa
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Dimension
650*700*1650mm
650*700*1650mm
Weight
308Kg
308Kg
Power supply
220V/110V/50HZ/60HZ 0.75KW
220V/110V/50HZ/60HZ 0.75KW
