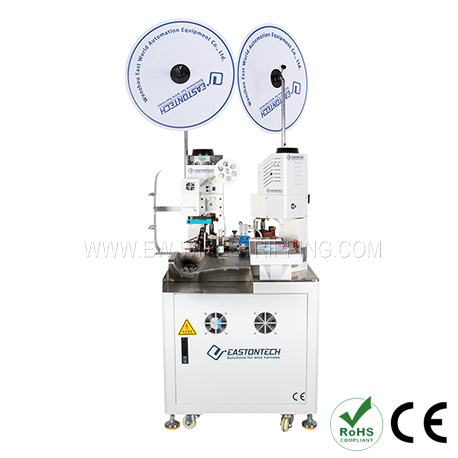

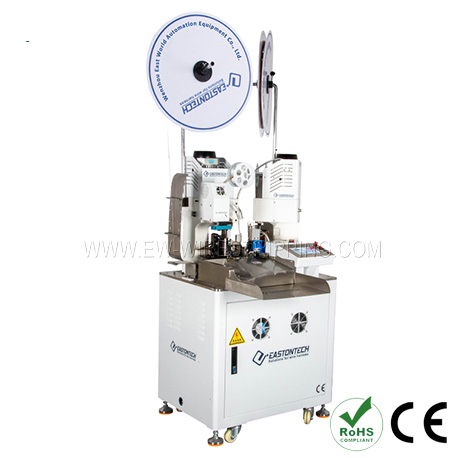

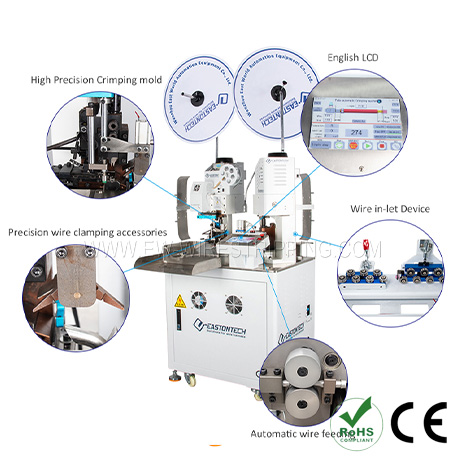

Model：Fully Automatic Double Side Terminal Crimping Machine(OD5.5mm)

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-8105
Applicable  wire  range:AWG30-AWG18/AWG24-AWG8  or  AWG24-AWG8（OD5.5mm)
Stripping length:0-15mm
Cut  precision:±(1+0.002*L)  mm,  L=cut  length
Cutting  length:45-9999mm
Capacity:3800pcs/hour(L=100mm)
Crimping  force:2.0T
Air  pressure:0.4-0.6Mpa
ENQUIRE NOW!
Video Specifications

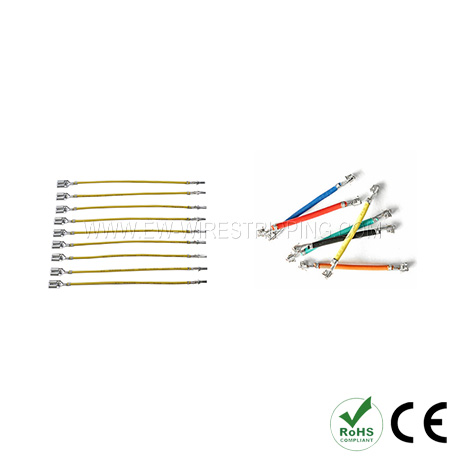

  • This is a fully automatic 2-ends wire cutting stripping and crimping machine for AWG30~AWG18. The highly flexible and electronically ontrolled benchtop unit accepts most universal or mini-style applicators for crimping both side-feed and rear-feed open barrel terminals. You can also save you settings in a program file number, so that you can call it out easily next time.

  • Model

    EW-8105

    EW-8105-1

    Applicable wire range

    AWG30-AWG18

    AWG24-AWG8(OD0.5-3.5mm) AWG18-AWG4（OD1-5.5mm)

    Stripping length

    1-15mm

    1-15mm

    Cut precision

    ±(1+0.002*L) mm, L=cut length

    ±(1+0.002*L) mm, L=cut length

    Cutting length

    45-9999mm

    45-9999mm

    Capacity

    3800pcs/hour(L=100)

    3500pcs/hour (L=100)

    Crimping force

    2.0T

    2.0T

    Applicators

    30mm or 40mm strokes for optional

    30mm or 40mm strokes for optional

    Air pressure

    0.4-0.6Mpa

    0.5-0.7Mpa

    Detection

    Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)

    Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)

    Dimension

    800*830*1530mm

    800*830*1530mm

    Weight

    315Kg

    315Kg

    Power supply

    220V/110V/50HZ/60HZ

    220V/110V/50HZ/60HZ
