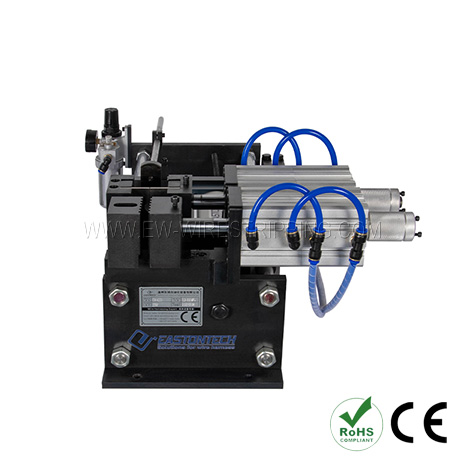

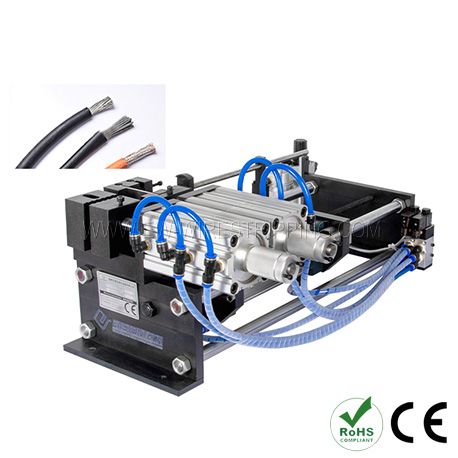

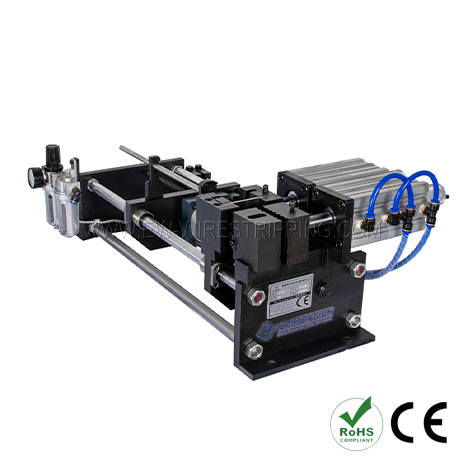

Model：Pneumatic Wire Stripping Machine 6-45mm

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-620
Stripping  length:200mm
Wire  Dia. :6-45mm
Air  Pressure:3-7kg/cm2
Voltage:220V/110V/50HZ/60HZ
Weight:72KG
Size:L900*W650*H350mm
ENQUIRE NOW!
Video Specifications

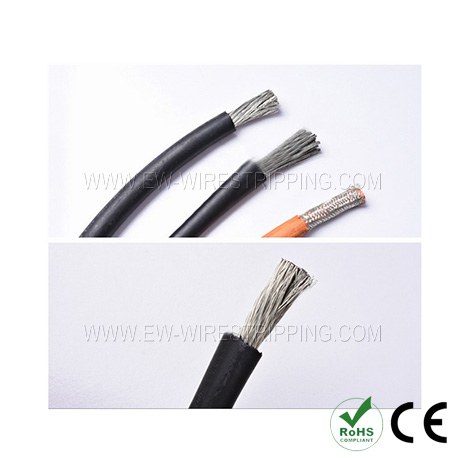

  • ●This pneumatic wire and cable stripping machine is suitable for processing large cables and special wires with high adhesion. The stripping diameter is up to 45mm, and the stripping length can be customized to 200mm.
    ●Gas-electric control, light and agile, easy to work
    ● Unique sliding seat, smooth reciprocating stroke, accurate peeling
    ●Adjustable depending on wire and cable gauge
    ●Suitable for processing large cables and special wires with high adhesion.

  • Model

     EW-620

    Stripping length

     200mm

    Wire Dia.

     6-45mm

    Air Pressure

     3-7kg/cm2

    Voltage

     220V/110V/50HZ/60HZ

    Force

    84-196KG

    Weight

    72KG

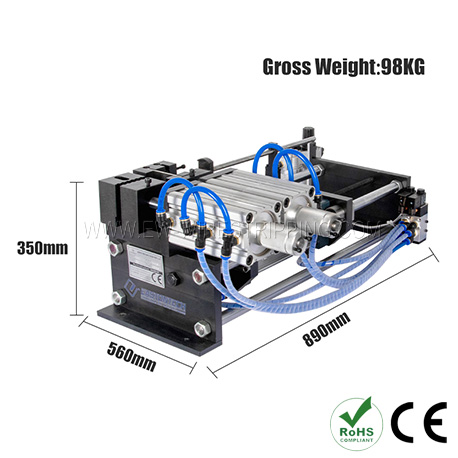

    Size

     L900*W650*H350mm
