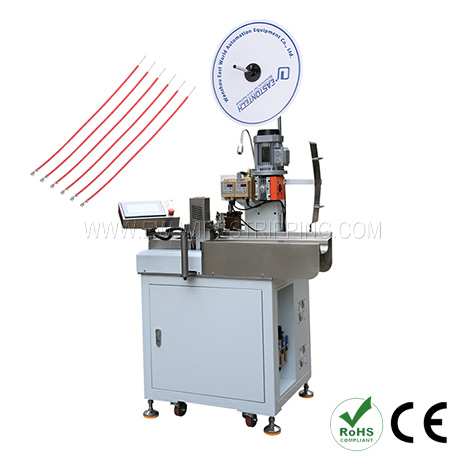

Model：Automatic Three Wires Single Side Wire Crimping Machine

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-8110
Applicable  wire  range:AWG32-AWG18
Stripping length:0.1-25mm
Cut  precision:±(0.5+0.002*L)  mm,  L=cut  length
Cutting  length:30-9999mm
Capacity:4000pcs/hour  (L=100mm)
Crimping  force:1.5T
Air  pressure:0.5-0.7Mpa
ENQUIRE NOW!
Video Specifications

  • ●This is a fully automatic single end three wires cutting stripping and crimping machine for AWG32~AWG18.

    ●The highly flexible and electronically ontrolled benchtop unit accepts most universal or mini-style applicators for crimping both side-feed and rear-feed open barrel terminals.

    ●You can also save you settings in a program file number, so that you can call it out easily next time.

  • Model

    EW-8110

    Applicable wire range

    AWG32-AWG18

    Stripping length

    0.1-25mm

    Cut precision

    ±(0.5+0.002*L) mm, L=cut length

    Cutting length

    30-9999mm

    Capacity

    4000pcs/hour (L=100mm)

    Crimping force

    1.5T

    Air pressure

    0.5-0.7Mpa

    Detection

    Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)

    Power

    220V/110V/50/60HZ

    Display language

    Chinese/English

    Dimension

    1060*700*1380mm

    Weight

    240Kg

    Power cord plug

    European, USA, Chinese plug
