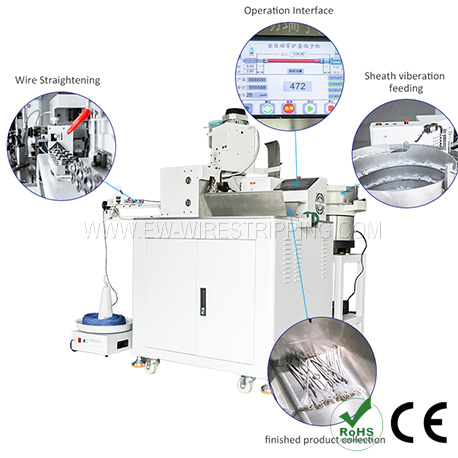

Model：Fully Automatic Single Head Terminal Crimping Sheath Inserting Machine

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-8125
Applicable  wire  range:AWG26-AWG16
Stripping length:0-15mm
Cut  precision:±2%
Cutting  length:50-9900mm
Capacity:1500pcs/hour (L≤300mm)
Crimping  force:2.0T-3.0T
ENQUIRE NOW!
Video Specifications
  • ●. This machine adopts imported top-level configuration: Japan Mitsubishi PLC control, servo motor, man-machine interface, Japan SMC pneumatic components, Japan THK track, Japan Xinbao reducer, Japan Omron and Keyence sensor.
    ●. Double-head cutting and stripping single-head wearing waterproof plug single-headed terminal, wearing pull sheath, peeling, cutting strip,easy to operate.
    ●. With stripping abnormality, pressing abnormality, air pressure anomaly detection device, to achieve true full automation. Speed up to 1500 / hour.

  • Model

    EW-8125

    Applicable wire range

    AWG26-AWG16

    Stripping length

    0-15mm

    Cut precision

    ±2%

    Cutting length

    50-9900mm

    Capacity

    1500pcs/hour (L≤300mm)

    Crimping force

    2.0T-3.0T

    Stroke

    30mm

    Air pressure

    0.5-0.7Mpa

    Adapter sheath

    187, 250, 110 and other straight pipe type sheath

    Function

    It can automatically complete cutting , stripping, wearing sheath and crimping

    Power /Power Rating

    220V/110V/50/60HZ /2.5KW

    Dimension

    750*950*1600mm

    Weight

    280Kg

    Options

    CCD visual Inspection; CFM
