Capability: 3-layer stripping for shield cable
Wire material: wide range of industrial wires
Conductor cross-section: 1.5 - 70 mm2
Cutting length: 1 - 100,000 mm
Cutting length tolerance:< 0.002 * L
Stripping length (side I): 0 - 400 mm
Stripping length (side II): 0 - 180 mm
Slitting function: optional

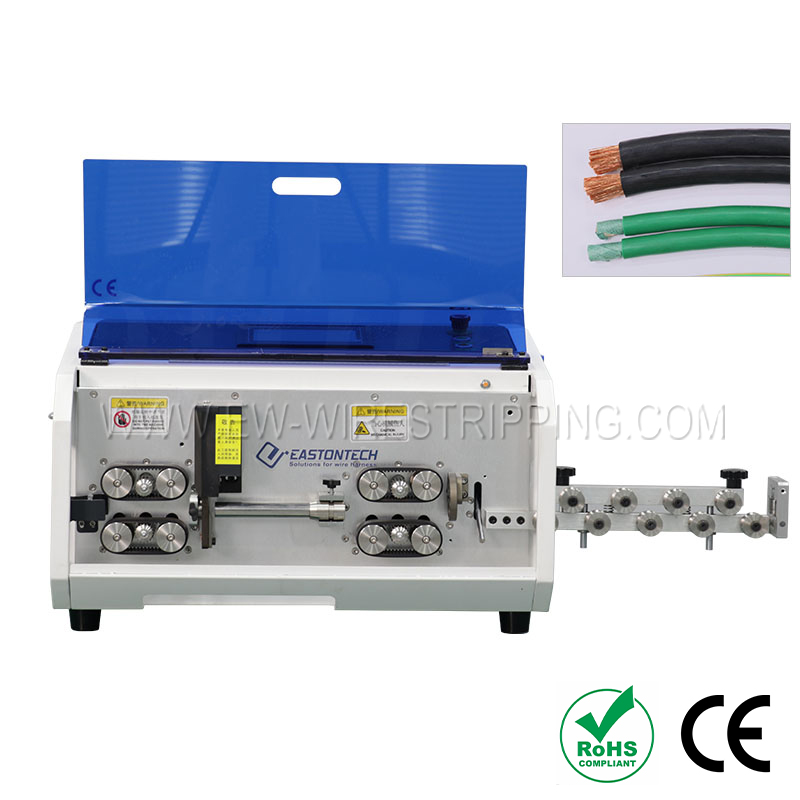

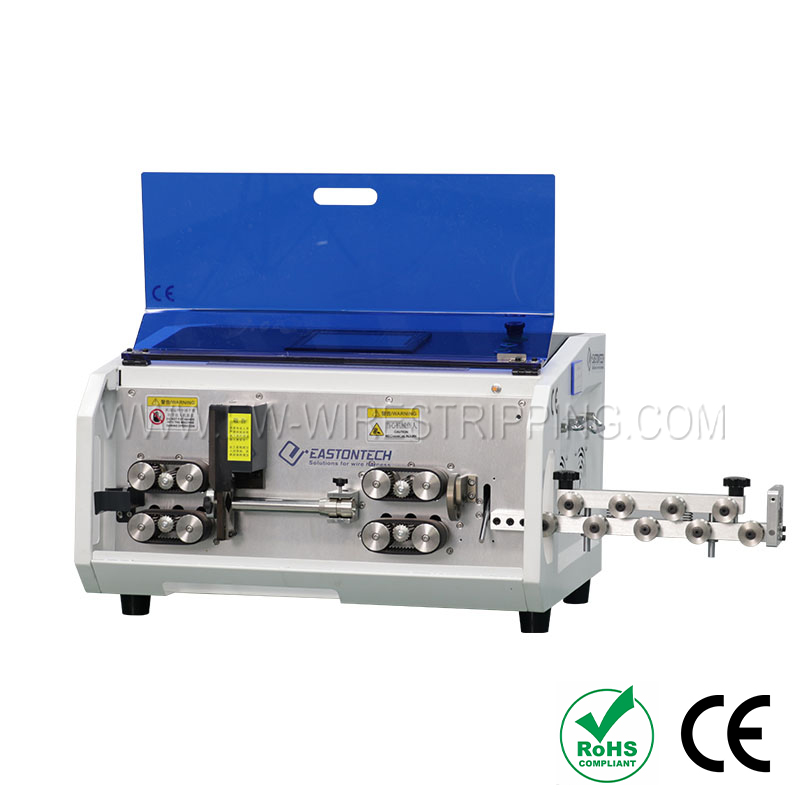

The EW-05D cutting and stripping machine processes wires with a cross section of 1.5 to 70 mm² with maximized productivity up to 2500 pcs./h!
1. 12-roller driving with belts feeding. Strong feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee, which is widely applied in defense industry, medical industry, information and communication technology (ICT) industry etc.
2. Programmable and intuitive roller gap and roller pressure setup on PLC touch screen, no need manual adjustment.
3. Longer left side stripping length (max.400 mm), thanks to the auto-open function of left roller set.
4. Memory capacity of 100 programs with specific 3-layer stripping program for shield cable.
5. Optional middle strip module, slit module.
6. Optional pre-feeder, stacker and coiler.
Model
EW-05D
Stripping capability
3-layer stripping for shield cable
Wire material
Wide range of industrial wires
Conductor cross-section
1.5 - 70 mm²
Cutting length
1 - 100,000 mm
Cutting length tolerance
< 0.002 * L
Stripping length (side I)
0 - 400 mm
Stripping length (side II)
0 - 180 mm
Slitting function
Optional
Maximum guide tube diameter
20 mm
Driving mode
12-roller with belts driving
Display mode
7-inch touch screen
Memory capacity
100 programs
Blade material
High speed steel
Productivity
1500 - 2500 pcs./h
Power supply
110, 220 V (50 - 60 Hz)
Power
800 W
Weight
80 kg
Dimension
700 * 640 * 480 mm
