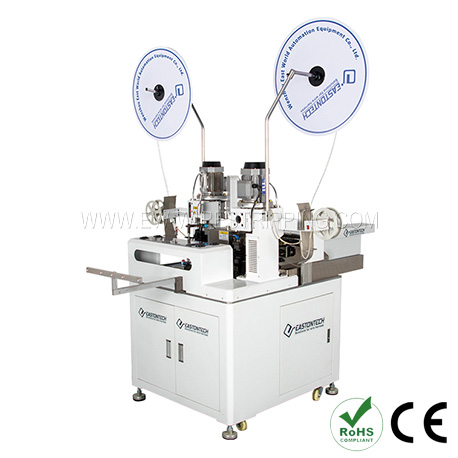

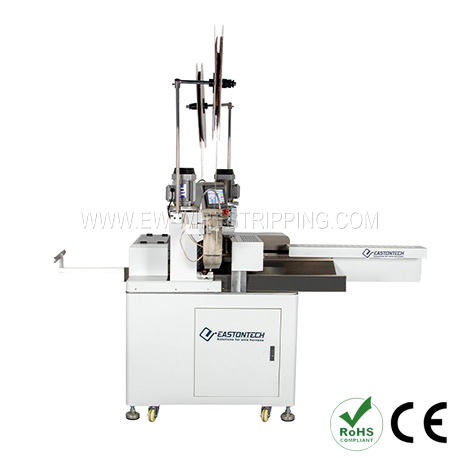

Model：Fully Automatic 5 Wires Double Head Wire Crimping Machine

Scan the QR code

Share to:
    •
  • 刷新
Model:EW-8055
Applicable  wire  range:AWG32-AWG18
Stripping length:1-15mm
Cutting  length:45-9999mm
Capacity:5000-6500pcs/hour
Crimping  force:2.0T
Air  pressure:0.5-0.7Mpa
ENQUIRE NOW!
Video Specifications

  • 1. Specialized for double ends crimping. Five wires for higher capacity,XY crimping unit to ensure precise crimping .

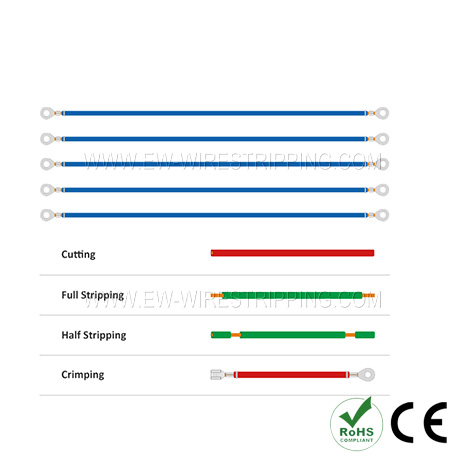

    2. Available for cut strip double crimp ,double-strip,double half-strip,double-twist,single-crimp,single-twist,can shift among all function,computerized easy for worker operating.

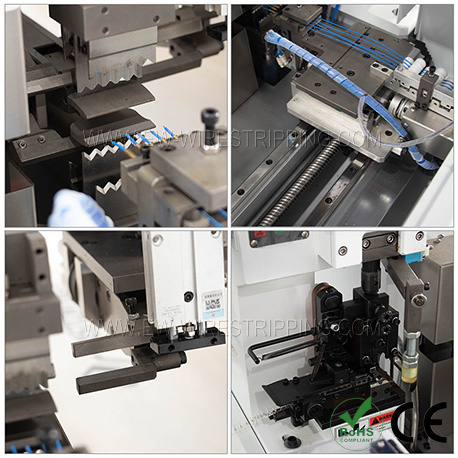

    3. Imported spare parts,simple structure,durable easy operating.

    4. Available for side feed/back feed mold.


  • Model

    EW-8055

    Applicable wire range

    AWG32-AWG18

    Stripping length

    1-10mm

    Cut precision

    ±(1+0.002*L) mm, L=cut length

    Cutting length

    45-9999mm

    Capacity

    5000-6500pcs/hour

    Crimping force

    2.0T

    Applicators

    30mm or 40mm strokes for optional

    Air pressure

    0.5-0.7Mpa

    Detection

    Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)

    Dimension

    1880*1000*1550mm

    Weight

    450Kg

    Power supply

    220V/110V/50HZ/60HZ
