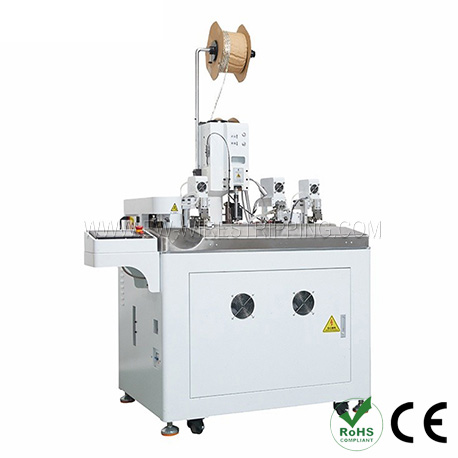

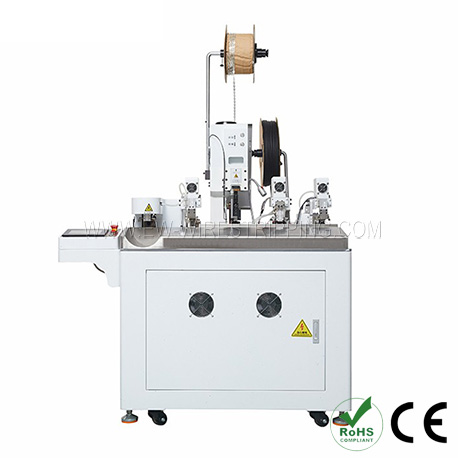

Automatic Single End Terminal Crimping Single End Inserting Heat Shrink Tube Machine
Cut Strip Terminate& Solder
1816
Model：Automatic Single End Terminal Crimping Single End Inserting Heat Shrink Tube Machine
Model:EW-8060
Applicable wire range:AWG20-AWG10
Stripping length:Front: 0.5-8mm; Rear: 0.1-10mm
Cutting length:75-9999mm
Capacity:1800-2000pcs/hour
Crimping force:2.0T
Air pressure:0.5Mpa
Shrinkage tube size:3.0-6.0mm Dia(15-28mm length)
Applicable wire range:AWG20-AWG10
Stripping length:Front: 0.5-8mm; Rear: 0.1-10mm
Cutting length:75-9999mm
Capacity:1800-2000pcs/hour
Crimping force:2.0T
Air pressure:0.5Mpa
Shrinkage tube size:3.0-6.0mm Dia(15-28mm length)
Technical Data
Model EW-8060
Applicable wire range AWG20-AWG10
Stripping length Front: 0.5-8mm; Rear: 0.1-10mm
Cut precision ±(0.5+0.002*L) mm, L=cut length
Cutting length 75-9999mm
Capacity 1800-2000pcs/hour
Crimping force 2.0T
Applicators 30mm or 40mm strokes for optional
Air pressure 0.5Mpa
Detection Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power 220V/110V/50/60HZ
Cutting depth The maximum adjustment is 5.50mm and the resolution is 0.01mm.
Shrinkage tube size 3.0-6.0mm Dia(15-28mm length)
Dimension 1450*800*1400mm
Weight 350Kg
Power cord plug European, USA, Chinese plug
Applicable wire range AWG20-AWG10
Stripping length Front: 0.5-8mm; Rear: 0.1-10mm
Cut precision ±(0.5+0.002*L) mm, L=cut length
Cutting length 75-9999mm
Capacity 1800-2000pcs/hour
Crimping force 2.0T
Applicators 30mm or 40mm strokes for optional
Air pressure 0.5Mpa
Detection Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power 220V/110V/50/60HZ
Cutting depth The maximum adjustment is 5.50mm and the resolution is 0.01mm.
Shrinkage tube size 3.0-6.0mm Dia(15-28mm length)
Dimension 1450*800*1400mm
Weight 350Kg
Power cord plug European, USA, Chinese plug
Feature

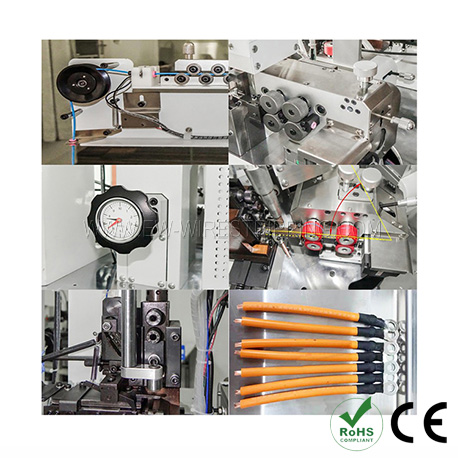

This is an fully automatic wire crimping and shrink tube instaling & heating machine,
●wire one side can crimp terminal ●one side installing shrink tube and heating.
We can also customize the machine according to customer's requirements, such as one side crimping and installing shrink tube,another side twisting and soldering.

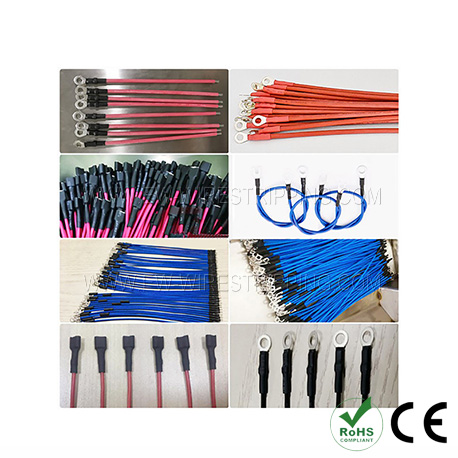

Application Range
