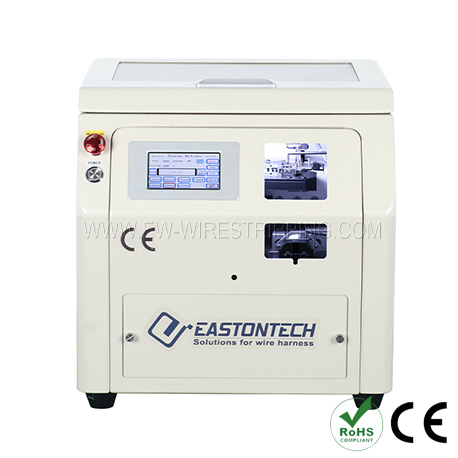

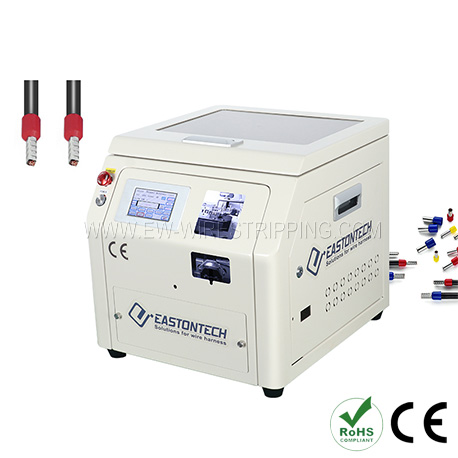

0.14-2.5mm2/0.3-4.0mm2/6-16mm2 Ferrule Strip&Crimp Machine with Twsiting
Electrical
2010
Model：0.14-2.5mm2/0.3-4.0mm2/6-16mm2 Ferrule Strip&Crimp Machine with Twsiting
Model:EW-5515
Wire Size:0.14-2.5mm2
0.3-4.0mm2
6-16mm2
Min. Stripping length of Jacket:40mm
Production Capacity: 2.5s/wire (1000-1300pcs/hour)
Wire Size:0.14-2.5mm2
0.3-4.0mm2
6-16mm2
Min. Stripping length of Jacket:40mm
Production Capacity: 2.5s/wire (1000-1300pcs/hour)
Technical Data
|
Model |
EW-5515-1 |
EW-5515-2 |
EW-5515-3 |
|

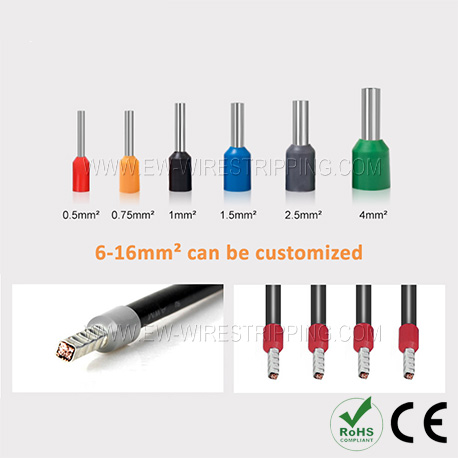

Wire Size |
0.14-2.5mm2 (max. Crimping length 12mm) |
0.3-4.0mm2 (max. Crimping length 12mm) |
6-16mm2 (max. Crimping length 12mm) |
|
Min. Stripping Length for Jacket |
40mm |
40mm |
40mm |
|
Stripping length of inner core |
8-18mm |
8-18mm |
8-18mm |
|
Production Capacity |
2.5s /wire (1000-1300pcs/hour) |
2.5s /wire (1000-1300pcs/hour) |
2.5s /wire (1000-1300pcs/hour) |
|
Storage |
100 crimping data |
100 crimping data |
100 crimping data |
|
Working Temperature |
0～50℃ |
0～50℃ |
0～50℃ |
|
Rotary blades |
2pc , Imported tungsten steel |
2pc , Imported tungsten steel |
2pc , Imported tungsten steel |
|
Air Supply |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
|
Power Source |
AC220V/110V/ 50/60HZ 400W |
AC220V/110V/ 50/60HZ 400W |
AC220V/110V/ 50/60HZ 400W |
|
Weight |
68KGS |
68KGS |
68KGS |
|

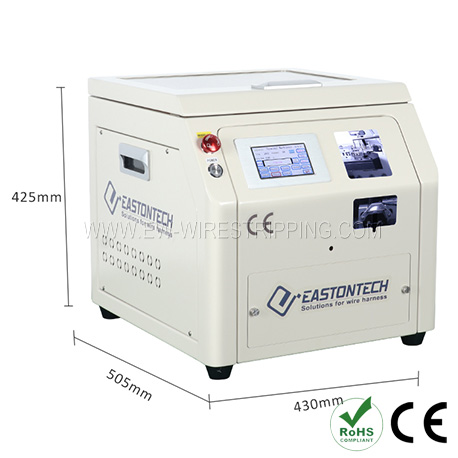

Dimension |
430×505×425mm |
430×505×425mm |
430×505×425mm |

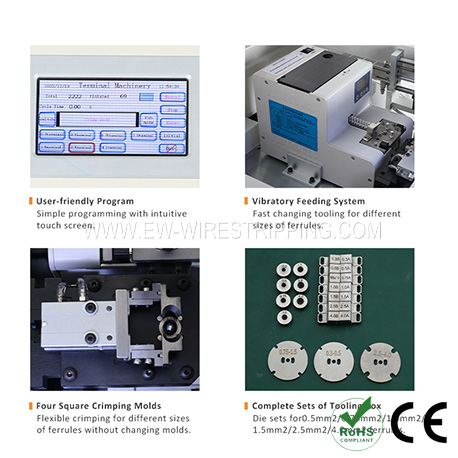

Feature
● Pneumatic and electric complement.
● Vibrating plate feeding the terminal , alarm when lack of terminal.
● Automatic trigger start, fast and convenient.
Application Range
