Automatic Coaxial Cable Cutting & Stripping Machine (5 - 25 mm) (6 - 120 mm²)
Pro-cut&Strip
Model：Automatic Coaxial Cable Cutting & Stripping Machine (5 - 25 mm) (6 - 120 mm²)
Model: EW-06H-5
Cable size: 5 - 25 mm OD (6 - 120 mm²)
Cutting length: 150 - 99999 mm
Cutting depth increment: 0.01 mm
Stripping length (side I): 0 - 250 mm
Stripping length (side II): 0 - 200 mm
Stripping length increment: 0.01 mm
Max. Stripping layer: 9
Cable size: 5 - 25 mm OD (6 - 120 mm²)
Cutting length: 150 - 99999 mm
Cutting depth increment: 0.01 mm
Stripping length (side I): 0 - 250 mm
Stripping length (side II): 0 - 200 mm
Stripping length increment: 0.01 mm
Max. Stripping layer: 9
Technical Data
|
EW-06H-5 |
|
|
Applicable cable type |
Coaxial cable, new energy cable and BV wire |
|
Cable size |
5 - 25 mm OD (6 - 120 mm²) |
|
Cutting length |
150 - 99999 mm |
|
Cutting depth increment |
0.01 mm |
|
Stripping length (side I) |
0 - 250 mm |
|
Stripping length (side II) |
0 - 200 mm |
|
Stripping length increment |
0.01 mm |
|
Max. Stripping layer |
9 |
|
Driving mode |
Servo motor / ball screw |
|
Display mode |
7-inch touch screen |
|
Rotary blades |
2 pcs. (imported tungsten steel) |
|
Strip blades |
4 pcs. (imported high speed steel) |
|
Productivity |
350 - 750 pcs./h |
|
Power supply |
110-240V (50 - 60 Hz) |
|
Power |
3.5 kW |
|
Weight |
320 kg |
|
Dimension |
1430 * 750 * 1300 mm |
Feature
The EW-06H-5 is a precise rotary strip machine for large square cable 5 - 25 mm OD with max. 9 layer stripping capability.
1. For max. 25 mm OD (120 mm²) cable
2. Rotary blades incision + V blades pull-off
3. 0.01 mm precise increment of cutting length and stripping length
4. Servo motor and ball screw driving
5. Up to 750 pcs./h productivity

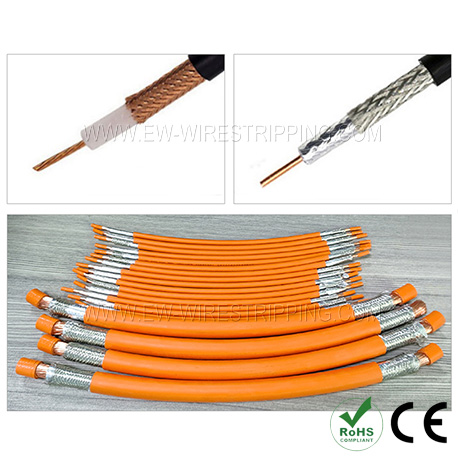

Application Range
