Full Automatic Terminal Machine Press Machine (Double head)

Solar Cable Line

1157
Model:Full Automatic Terminal Machine Press Machine (Double head)
Share to:
Model:EW-801
Usage:Wire  Crimping&stripping
Applicable  wire:AWG12-AWG28
Cutting  length:45-9999mm
Capacity:3000-4500pcs/hour

Technical Data

Model

EW-801

Applicable wire range

AWG28-AWG12

Stripping length

0-10mm

Cut precision

±(0.5+0.002*L) mm, L=cut length

Cutting length

45-9999mm

Capacity

3000-4500pcs/hour

Crimping force

2.0T

Applicators

30mm or 40mm strokes for optional

Air pressure

0.4-0.6Mpa

Detection

Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)

Power

220V/110V/50/60HZ

Display language

Chinese/English

Dimension

700*800*1500mm

Weight

358KGS

Power cord plug

European, USA, Chinese plug

Feature

·  This is a fully automatic 2-ends wire cutting stripping and crimping machine for AWG28~AWG12.

·  The highly flexible and electronically ontrolled benchtop unit accepts most universal or mini-style applicators for crimping both side-feed and rear-feed open barrel terminals.

·  You can also save you settings in a program file number, so that you can call it out easily next time.

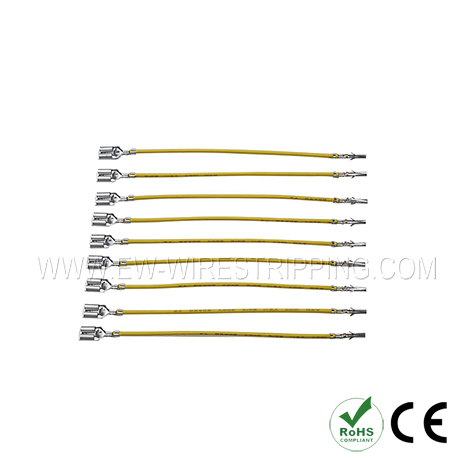

Application Range
