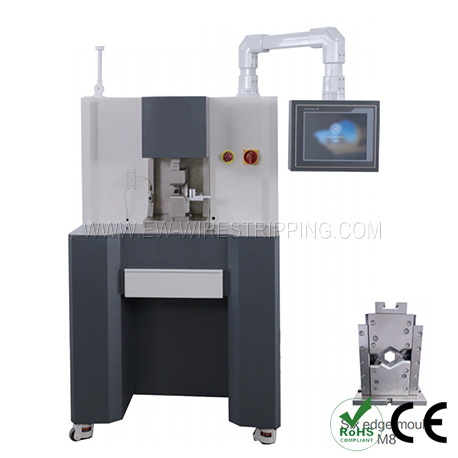

Servo large terminal crimping machine
Electrical
Model：Servo large terminal crimping machine
Model:EW-5210-20TS / 40TS
Crimping Force:200KN/400KN
Crimping width:≤15mm /≤22mm
Stroke:48mm /60mm
Crimping Force:200KN/400KN
Crimping width:≤15mm /≤22mm
Stroke:48mm /60mm
Technical Data
|
Model |
EW-5210-20TS |
EW-5210-40TS |
|
Wire range |
6-150mm2 |
10-240mm2 |
|
Crimping Force |
200KN |
400KN |
|
Crimping width |
≤15mm |
≤22mm |
|
Stroke |
48mm |
60mm |
|
Motor |
4.5KW |
4.5KW |
|
Power |
AC110/220/50/60HZ |
380V 50/60HZ |
|
Weight |
330KGS |
700KGS |
|
Dimension |
700*880*1340mm |
840*960*1680mm |
Feature
· New mode servo motor crimping machine , can change different types of applicators according to different products.
· Advanceed servo motor and PLC control system.
· Crimping force monitor is used to check if wire crimped qualified.
