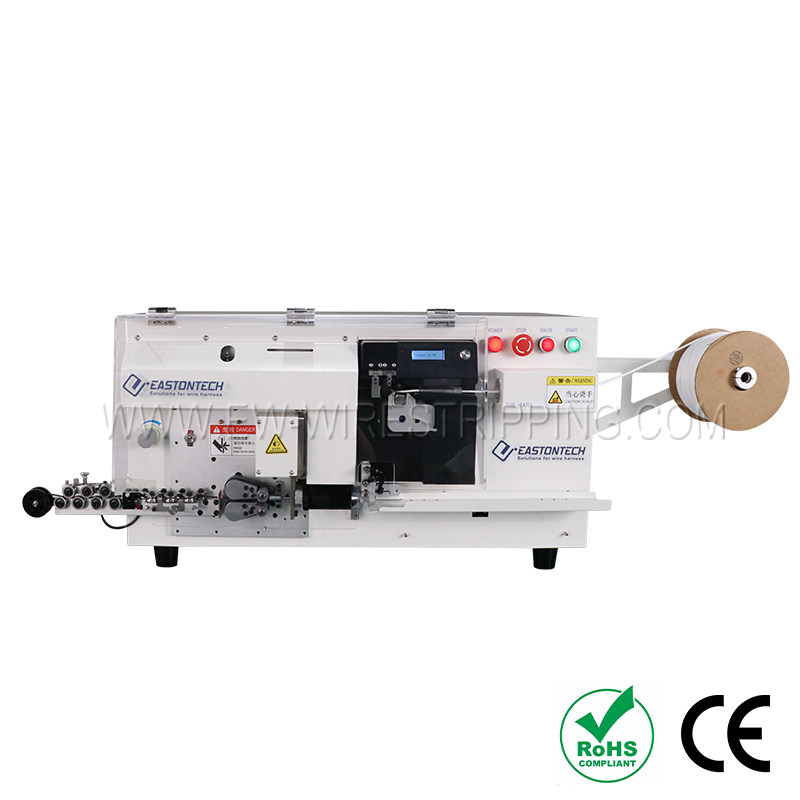

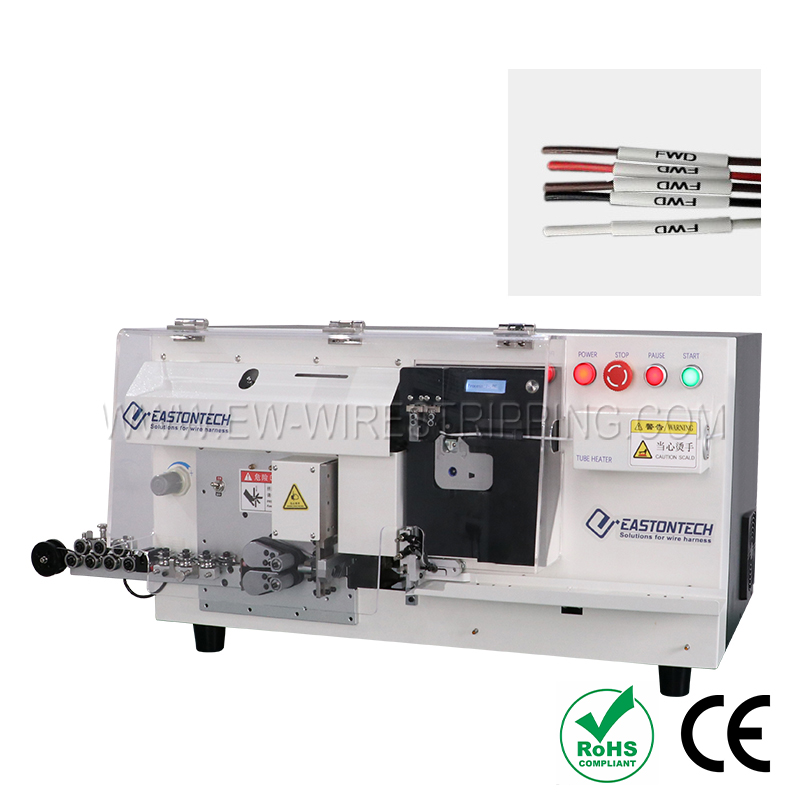

wire stripping tube inserting machine
Pro-cut&Strip
Technical Data
|
Model |
EW-1260 |
|
Function |
Printing,inserting,stripping |
|
Wire material |
PVC, fiberglass etc. |
|
Conductor cross-section |
0.5 - 6 mm² BVR |
|
Cutting length |
70 - 99999 mm |
|
Cutting length tolerance |
0.002 * L |
|
Stripping length |
5mm-20mm |
|
Tube Length |
15-30mm |
|
Productivity |
600pcs/h |
|
Air Pressure |
0.4-0.6Mpa |
|
Power supply |
110, 220 V (50 - 60 Hz) |
|
Power |
200 W |
|
Working Temperature |
5-35°C |
|
Dimension |
860 * 390 * 400 mm |
|
Control mode |
PC,USB interface |
|
Tube heating |
With the function of heating, clearer printing |
|
Tube inserting |
Double ends tube insertion |
|
Tube position |
Adjustable |
|
Tube detection |
Wire,tube detection |
Feature
● High precision and productivity solutions for wire cable cutting and stripping.
● Easy to operate program and low maintenance.
● Safety protection.
● Optional external device connection possibility: Wire feeding machine, and wire take-out device...

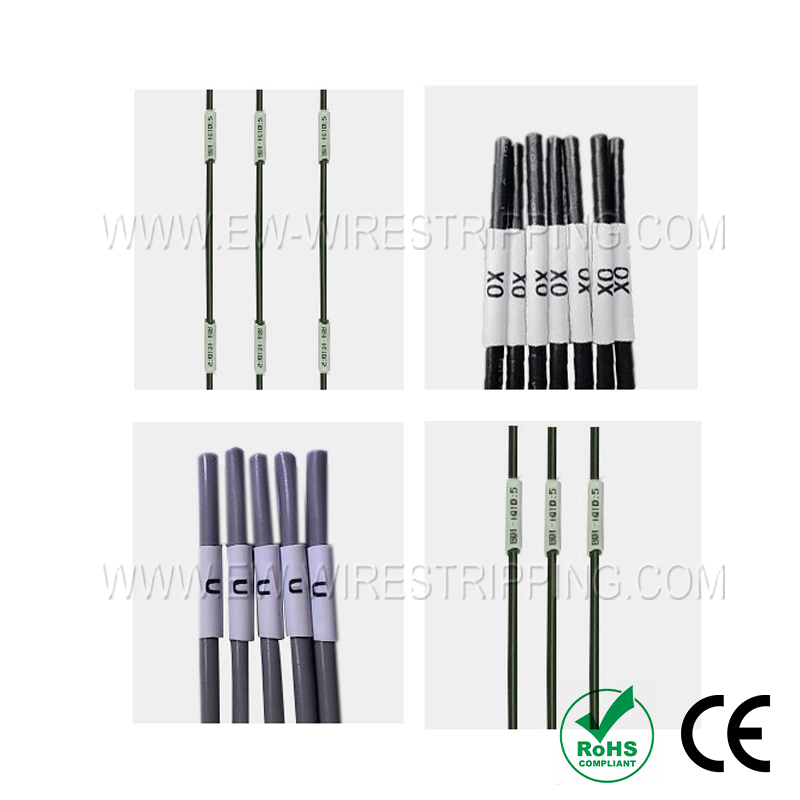

Application Range
More Info
Model：wire stripping tube inserting machine
Model EW-1260
Wire material PVC, fiberglass etc.
Conductor cross-section 0.5 - 6 mm²
Cutting length 70 - 99999 mm
Cutting length tolerance 0.002 * L
Stripping length 5mm-20mm
Tube Length 15-30mm
Productivity 600pcs/h
Air Pressure 0.4-0.6Mpa
Power supply 110, 220 V (50 - 60 Hz)
Power 200 W
Working Temperature 5-35°C
Dimension 860 * 390 * 400 mm
Wire material PVC, fiberglass etc.
Conductor cross-section 0.5 - 6 mm²
Cutting length 70 - 99999 mm
Cutting length tolerance 0.002 * L
Stripping length 5mm-20mm
Tube Length 15-30mm
Productivity 600pcs/h
Air Pressure 0.4-0.6Mpa
Power supply 110, 220 V (50 - 60 Hz)
Power 200 W
Working Temperature 5-35°C
Dimension 860 * 390 * 400 mm
