Model:Multi-conductor Cable Cutting & Stripping Machine (2.5 - 120 mm²)

Scan the QR code

Share to:
  • 刷新
1.  Model:EW-05H
2.  Conductor  cross-section:  2.5  -  120  mm²
3.  Cutting  length:  1  -  99999.99  mm
4.  Cutting  length  tolerance:  ±  0.002  *  L
5.  Stripping  length  (side  I):  1  -  300  mm
6.  Stripping  length  (side  II):  1  -  150  mm
  • The EW-05H is designed for processing wide range of industrial multi-conductor cable up to 120 mm².

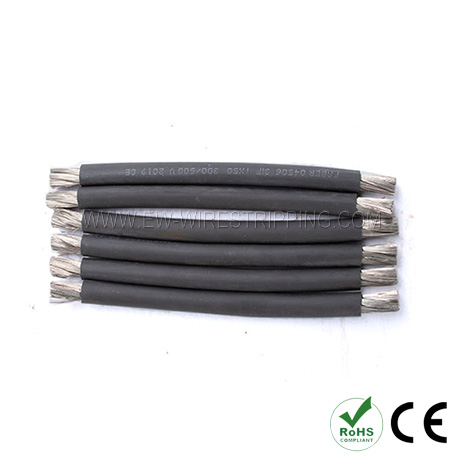

    ● Full-strip; half-strip.

    ● User-friendly production setup.

    ● Memory capacity of 100 materials.

    ● Equipped material detection sensor and safety guard sensor.

    ● Optional all servomotor version with 20 % increased productivity.

    ● Custom possibility for special applications.

  • Model

    EW-05H

    EW-05H+

    Conductor cross-section

    2.5 - 120 mm²

    2.5 - 120 mm²

    Core wire stripping

    N/A

    2 - 10 cores

    Cutting length

    1 - 99999.9 mm

    1 - 99999.9 mm

    Cutting length tolerance

    < 0.002 * L (L = cutting length)

    < 0.002 * L (L = cutting length)

    Stripping length (side I)



    - Full strip: 1 - 300 mm

    - Half strip: 1 - 1000 mm





    Cable jacket

    - Full strip: 20 - 250 mm



    Core wire

    - Full strip: 1 - 50 mm

    Stripping length (side II)





    - Full strip: 1 - 150 mm

    - Half strip: 1 - 500 mm





    Cable jacket

    - Full strip: 20 - 200 mm



    Core wire

    - Full strip: 1 - 50 mm



    Maximum guide tube diameter

    30 mm

    27mm

    Productivity

    2000 pcs./h

    2000 pcs./h

    Blade material

    Imported high speed steel

    Imported high speed steel

    Display mode

    7-inch touch screen

    7-inch touch screen

    Driving mode

    24-wheel driving, servo tool holder

    24-wheel driving, servo tool holder

    Feeding mode

    By belts

    By belts

    Power supply

    110, 220 V (50 - 60 Hz)

    110, 220 V (50 - 60 Hz)

    Power

    2.25 kW

    1.85 kW

    Compressed air connection

    0.5 - 0.7 MPa

    0.5 - 0.7 MPa

    Weight

    260 kg

    260 kg

    Dimension

    1020 * 590 * 1140 mm

    1020 * 590 * 1140 mm

    Remarks

    Custom options in accordance with samples
