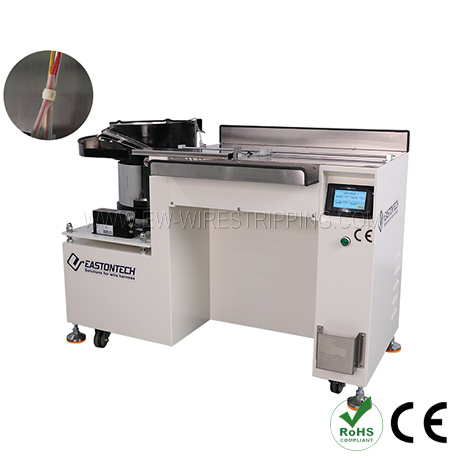

Nylon Cable Tie Tying Machine
Wind & Nylon Tying
8640
Model：Nylon Cable Tie Tying Machine
Model: EW-23A
Cable tie width: 3 - 5 mm
Cable tie length: 60 - 160 mm
Tying Diameter: 2 - 30 mm
Tail length: 0 - 3 mm
Cable tie width: 3 - 5 mm
Cable tie length: 60 - 160 mm
Tying Diameter: 2 - 30 mm
Tail length: 0 - 3 mm
Technical Data
| Model | EW-23A |
| Cable tie width | 3 - 5 mm |
| Tying Diameter | 2 - 30 mm |
| Tail length | 0 - 3 mm |
| Maximum tension force | 15 N |
| Activation | By foot pedal |
| Productivity | 1200 - 1500 pcs./h |
| Compressed air connection | 0.6 MPa |
| Power supply | 110, 220 V (50 - 60 Hz) |
| Power | 750 W |
| Dimension | 1200 * 550 * 780 mm |
| Weight | 125 kg |
Feature
● The machine is designed for various industrial tying applications.
● The nylon cable tie will be transported by the customized vibrating feeder to the tying part.
● Activated by foot pedal, the fixed stable tying part allows operator to hold the product by two hands for steady operation.
● PLC screen display and fast production set up.
● Special applications can be customized by sending samples.
