Model:Cable Cutting & Stripping Machine (0 - 52 mm) (10- 400 mm2)

Scan the QR code

Share to:
  • 刷新
Model:  EW-05S-2
Conductor  cross-section:  10-  400  mm2
Cutting  length:  not  limited
Cutting  length  tolerance:<  0.002  *  L

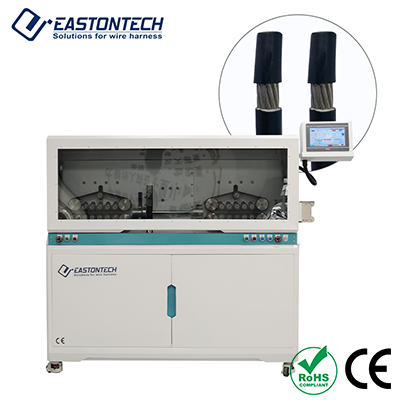

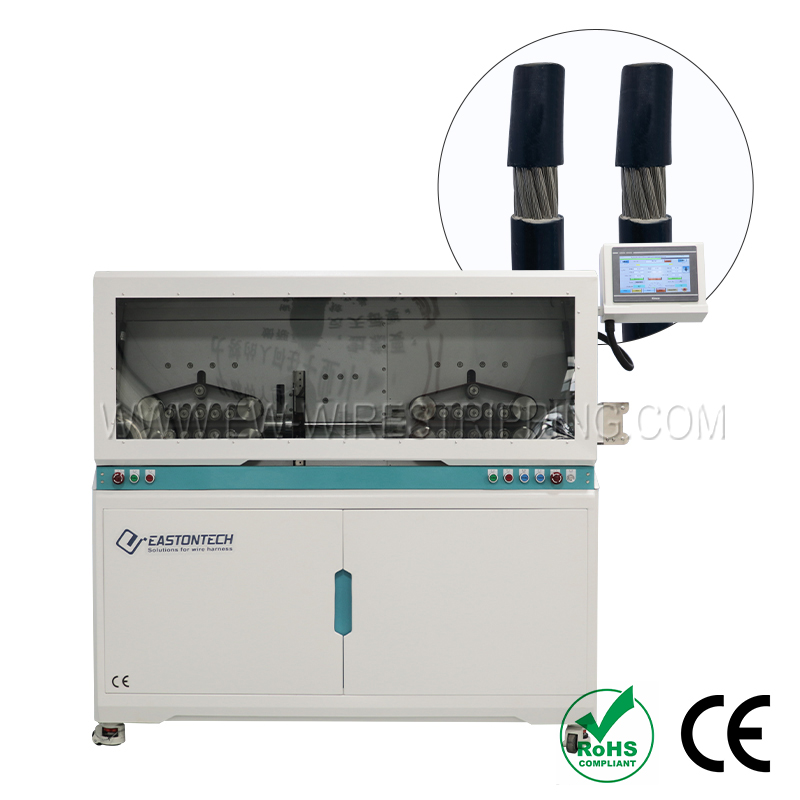

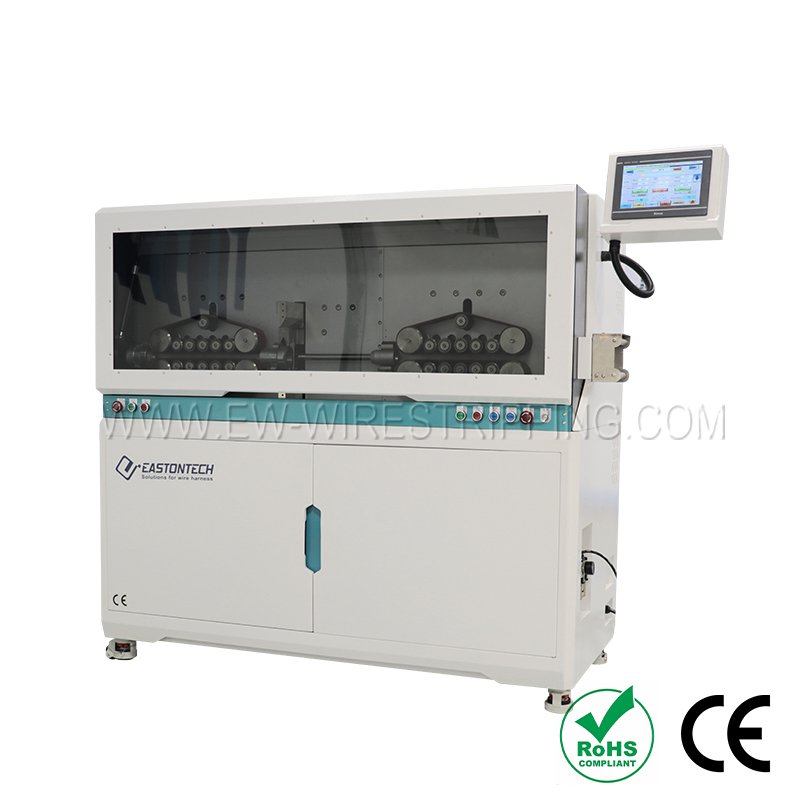

  • The EW-05S-2 is a versatile cut and strip machine for single core cable up to 400 mm square.

    1. Powered by hybrid servo motor, the productivity is maximized to 1000 pcs./h

    2. Uni-V jacket stripping blades (optional radius blades for special jacket material).

    3. Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.

    4. The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.

    5. Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).

  • Model

    EW-05S-2



    Conductor cross-section

    10 - 400 mm²

    Cutting length

    1 - 999,999.9 mm

    Cutting length tolerance

    < 0.002 * L (L = cutting length)

    Stripping length (side I)

    Cable jacket

    - Full strip: 11000 mm

    - Half strip: 1 - 1500 mm

    Stripping length (side II)

    Cable jacket

    - Full strip: 1 - 300 mm

    - Half strip: 1 - 500 mm

    Maximum guide tube diameter

    52 mm



    Productivity

    1000 pcs./h

    Blade material

    Imported high speed steel

    Display mode

    7-inch touch screen

    Driving mode

    Servo motor cutting with 32 roller driving system

    Feeding mode

    Belts feeding with pressure stripping function.

    Roller Gap

    Digital program control

    Power supply

    110, 220 V (50 - 60 Hz)

    Power

    2 kW

    Compressed air connection

    0.5 - 0.8 MPa

    Weight

    750 kg

    Dimension

    1720 * 700 * 1287 mm

    Remarks

    Custom options by sending samples
