Multi-conductor Cable Cutting & Stripping Machine (0 - 16 mm) (4 - 30 mm2)
Eco-cut&Strip
Technical Data
|
Model |
EW-05F |
EW-05F-1 |
|
Conductor cross-section |
1 - 30 mm² |
1 - 30 mm² |
|
Core wire stripping |
2 - 11 cores |
N/A |
|
Cutting length |
1 - 99999.9 mm |
1 - 99999.9 mm |
|
Cutting length tolerance |
< 0.002 * L (L = cutting length) |
< 0.002 * L (L = cutting length) |
|
Stripping length (side I) |
Cable jacket - Full strip: 1 - 150 mm - Half strip: 1 - 1000 mm
Core wire - Full strip: 1 - 30 mm - Half strip: 1 - 100 mm |
Full strip: 1 - 150 mm Half strip: 1 - 1000 mm |
|
Stripping length (side II) |
Cable jacket - Full strip: 1 - 120 mm - Half strip: 1 - 350 mm
Core wire - Full strip: 1 - 30 mm - Half strip: 1 - 60 mm |
Full strip: 1 - 120 mm Half strip: 1 - 350 mm |
|
Maximum guide tube diameter |
16 mm |
16 mm |
|
Productivity |
600 pcs./h 400 pcs./h (multi-conductor cable) |
600 pcs./h |
|
Blade material |
Imported high speed steel |
Imported high speed steel |
|
Display mode |
7-inch touch screen |
7-inch touch screen |
|
Driving mode |
16-wheel driving, servo tool holder |
16-wheel driving, servo tool holder |
|
Feeding mode |
By belts |
By belts |
|
Power supply |
110, 220 V (50 - 60 Hz) |
110, 220 V (50 - 60 Hz) |
|
Power |
1 kW |
1 kW |
|
Compressed air connection |
0.5 - 0.7 MPa |
0.5 - 0.7 MPa |
|
Weight |
100 kg |
92 kg |
|
Dimension |
795 * 490 * 500 mm |
795 * 490 * 500 mm |
|
Remarks |
Special application can be customized by sending samples |
|
Feature

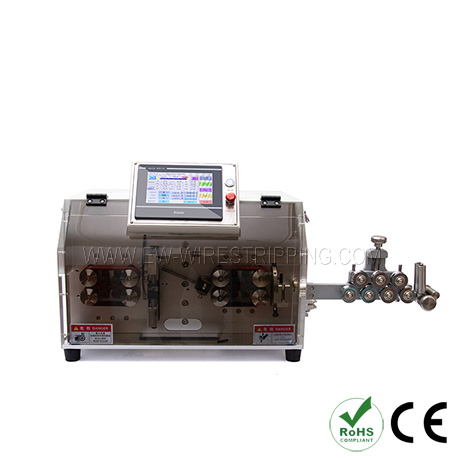

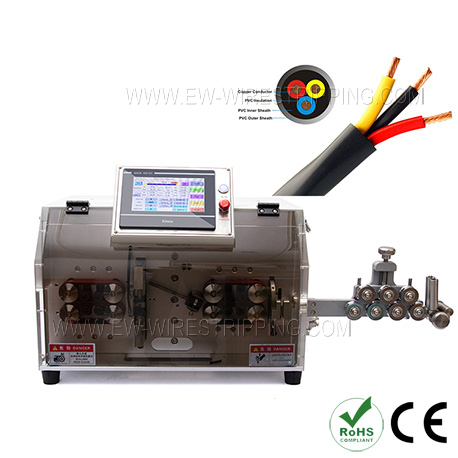

The EW-05F is a versatile cut and strip machine for multi-core cables (max. 11 cores) and multi-stranded single wire up to 30 mm square.
1. Powered by hybrid servo motor, the productivity is maximized to 600 pcs./h (400 pcs./h multi-core cable).
2. Uni-V jacket stripping blades (optional radius blades for special jacket material).
3. Uni-flat core wire blades for max. 11 core wires (optional teeth blades for rubber insulation).
4. Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
5. The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.

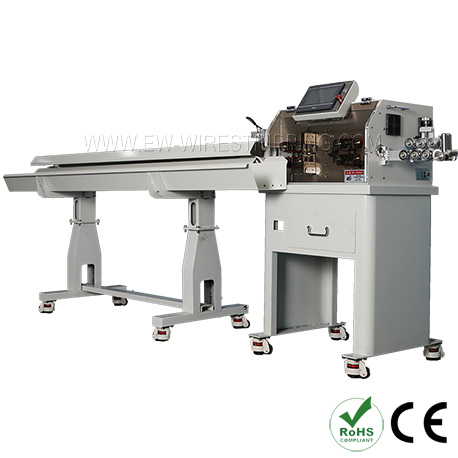

6. Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).

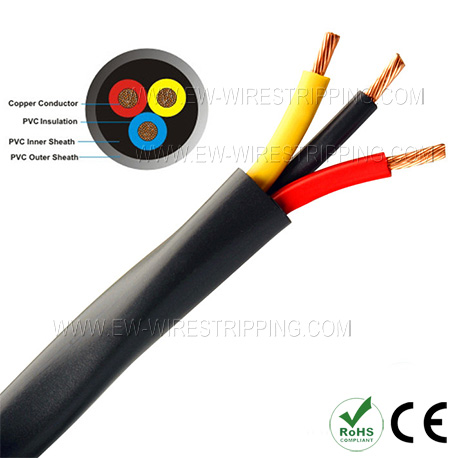

Application Range
More Info
Model：Multi-conductor Cable Cutting & Stripping Machine (0 - 16 mm) (4 - 30 mm2)
Model: EW-05F
Conductor cross-section: 1 - 30 mm2
Core wire stripping: 2 - 11 cores
Cutting length: not limited
Cutting length tolerance:< 0.002 * L
Conductor cross-section: 1 - 30 mm2
Core wire stripping: 2 - 11 cores
Cutting length: not limited
Cutting length tolerance:< 0.002 * L
