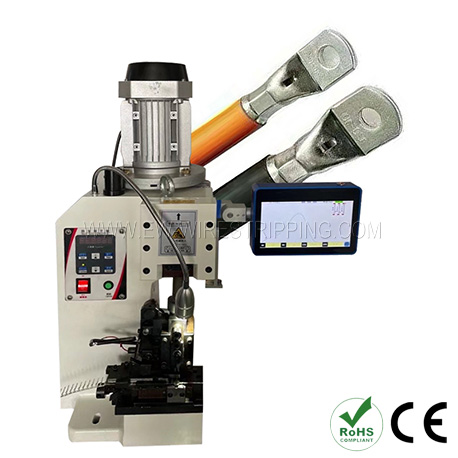

2-4 Ton Precision Terminal Crimping Machine
Electrical
Model：2-4 Ton Precision Terminal Crimping Machine
Model：EW-5040+
Motor Power:750W
Crimping Force:20KN
Crimping Stroke:30mm
Weight:70KG
Size:250*280*650mm
Motor Power:750W
Crimping Force:20KN
Crimping Stroke:30mm
Weight:70KG
Size:250*280*650mm
Technical Data
|
Model |
EW-5040+2 |
EW-5040+3 |
EW-5040+4 |
|
Motor Power |
750W |
1100W |
1500W |
|
Crimping Force |
20KN |
30KN |
40KN |
|
Crimping Stroke |
30mm/40mm |
30mm/40mm |
30mm/40mm |
|
Voltage |
110V/220V/50Hz/60Hz |
110V/220V/50Hz/60Hz |
110V/220V/50Hz/60Hz |
|
Dimension |
250*280*650mm |
250*280*650mm |
260*300*710mm |
|
Weight |
70kgs |
72kgs |
78kgs |
Feature
· All in one piece iron casting crimping body with extra 25% weight compared to other economical model;
· 15% Motor power rate increase ;
· Accurate crimping height adjustment scale;
· 60mm solid casting seat plus 15mm metal seat to load applicators;
· 30/40/50mm crimping stroke optional;
· Save your cost in nonconformity and future maintenance.
Application Range
