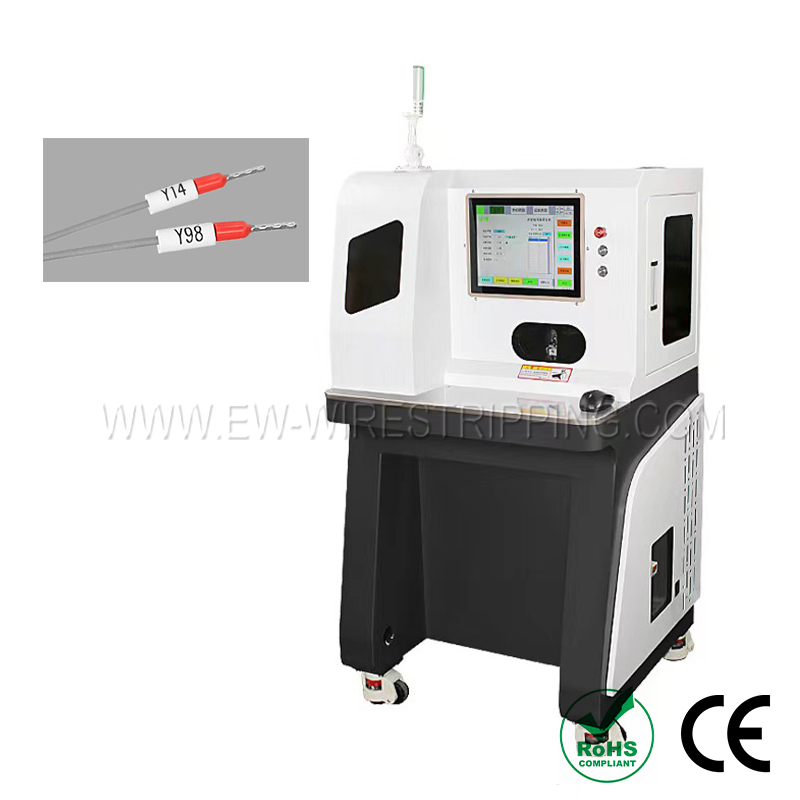

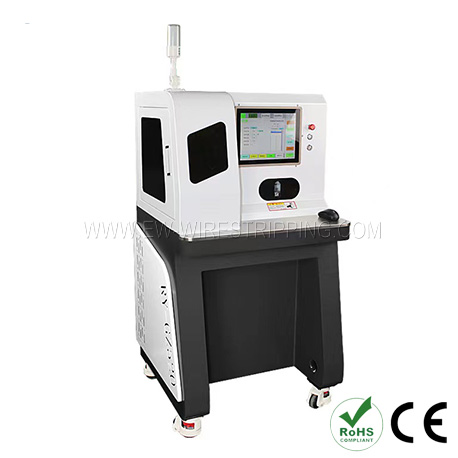

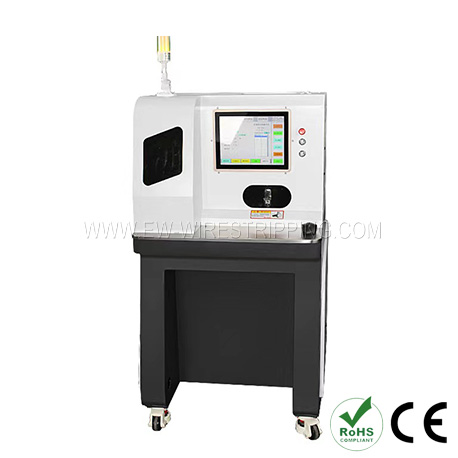

Tube marking and ferrule stripping crimping machine
Electrical
Technical Data
|
EW-5320 |
|
|
Control Mode |
human-machine interface, electronic control, pneumatic control |
|
Wire Size |
0.5-4.0mm2 |
|
Tube Size |
Insulator length <7.5mm ,conductor length<12mm |
|
Stripping Length |
8-16mm |
|
Production Capacity |
650pcs/h |
|
Air Supply |
0.5-0.8Mpa |
|
Tube marking length |
10-32mm |
|
Stripping length of outer jacket |
> 75mm |
|
Power Source |
AC220V/110V/50/60HZ |
|
Weight |
100KG |
|
Dimensions |
W730mm×L760mm×H1400mm |
Feature
Application Range
More Info
Model：Tube marking and ferrule stripping crimping machine
Model：EW-5320
Wire Size：0.5/0.75/1.0/1.5/2.5/4.0mm2
Tube Size：Insulator length <7.5mm ,conductor length<12mm
Strip Length：8-16mm
Production Capacity：650pcs/h
Air Supply：0.5-0.8Mpa
Wire Size：0.5/0.75/1.0/1.5/2.5/4.0mm2
Tube Size：Insulator length <7.5mm ,conductor length<12mm
Strip Length：8-16mm
Production Capacity：650pcs/h
Air Supply：0.5-0.8Mpa
