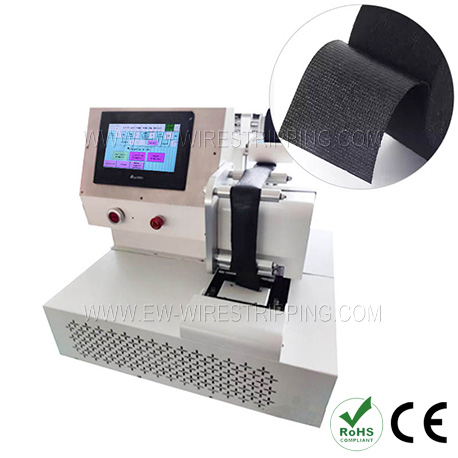

EW-1695 Wide Tape Wrapping Machine
Tape Bundling
929
Model：EW-1695 Wide Tape Wrapping Machine
Model:EW-1695
Air Pressure:0.4-0.6Mpa
Output:5s
Winding overlap:< ±2
Work piece length:≥140mm
Air Pressure:0.4-0.6Mpa
Output:5s
Winding overlap:< ±2
Work piece length:≥140mm
Technical Data
|
Model |
EW-1695 |
|
Air Pressure |
0.4-0.6Mpa |
|
Output |
5s |
|
Winding position accuracy |
< ±2 |
|
Winding overlap |
< ±2 |
|
Work piece length |
≥140mm |
|
Workpiece diameter |
3-5 mm |
|
Tape width |
≤85mm |
|
Cutting length |
20-60mm |
|
Distance from end position |
The distance between the edge of the tape and the end of the workpiece is ≥15mm |
|
Machine power |
500W |
|
Voltage |
110/220V, 50/60HZ |
|
Machine size |
500*540*520mm |
|
Machine weight |
50kgs |
Feature
●This equipment is suitable for wide tape wrapping of single or multiple wire bundles.
●According to the needs, the length of different tapes and the number of winding turns can be adjusted digitally, which is easy to adjust. It has automatic clamping, tightening and winding functions, and the tape winding stability is better.
●After manually placing the wire harness, the equipment automatically clamps and tightens it, cuts off the tape, and completes the wrapping.
Application Range
