Function: Cut, Strip & Twist
Conductor cross-section: 0.75 - 30 mm2
Core wire stripping: 2 - 10 cores
Cutting length: 1 - 99999.9 mm
Cutting length tolerance:< 0.002 * L

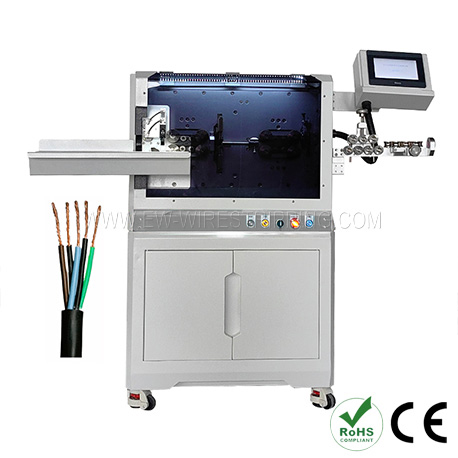

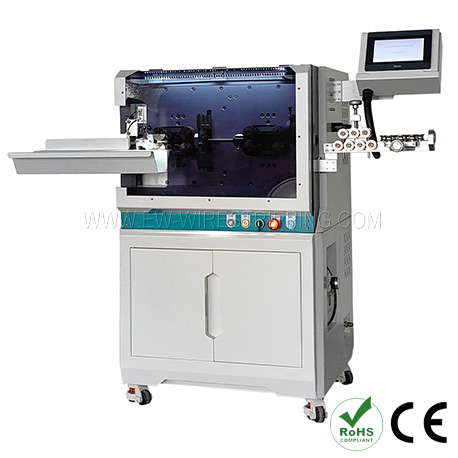

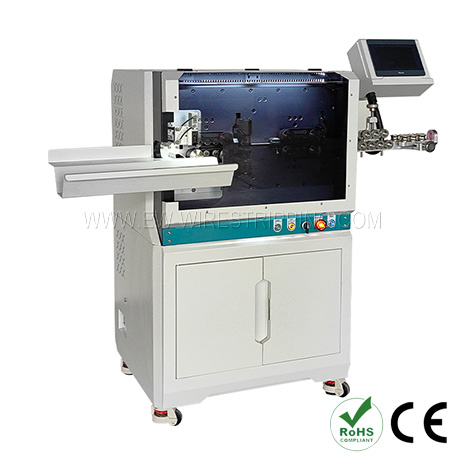

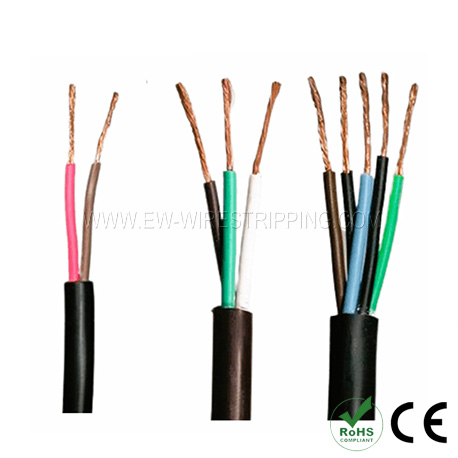

The EW-05F+T3 can cut and strip max. 30 mm square multi-core cable and twist core wire copper.
1. Powered by hybrid servo motor, the productivity is maximized to 600 pcs./h (400 pcs./h multi-core cable).
2. Uni-V jacket stripping blades (optional radius blades for special jacket material).
3. Uni-flat core wire blades for max. 10 core wires (optional teeth blades for rubber insulation).
4. The twist units can pull-off the core wire insulation and twist the copper inside.
5. Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
6. The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
7. Optional add-on: pre-feeder, middle strip (window strip) module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).
Model
EW-05F+T3
Function
Cut, Strip & Twist
Conductor cross-section
1 - 30 mm²
Core wire stripping
2 - 11 cores
Cutting length
1 - 99999.9 mm
Cutting length tolerance
< 0.002 * L (L = cutting length)
Stripping length (side I)
Cable jacket
- Full strip: 1 - 150 mm
- Half strip: 1 - 1000 mm
Core wire
- Full strip: 1 - 30 mm
- Half strip: 1 - 100 mm
Stripping length (side II)
Cable jacket
- Full strip: 1 - 120 mm
- Half strip: 1 - 350 mm
Core wire
- Full strip: 1 - 30 mm
- Half strip: 1 - 60 mm
Maximum guide tube diameter
16 mm
Productivity
600 pcs./h
400 pcs./h (multi-conductor cable)
Blade material
Imported high speed steel
Display mode
7-inch touch screen
Driving mode
16-wheel driving, servo tool holder
Feeding mode
By belts
Power supply
110, 220 V (50 - 60 Hz)
Power
1 kW
Compressed air connection
0.5 - 0.7 MPa
Weight
100 kg
Dimension
1050 * 600 * 1200 mm
