Conductor cross-section: 0.75 - 30 mm2
Core wire stripping: 2 - 10 cores
Cutting length: not limited
Cutting length tolerance:< 0.002 * L

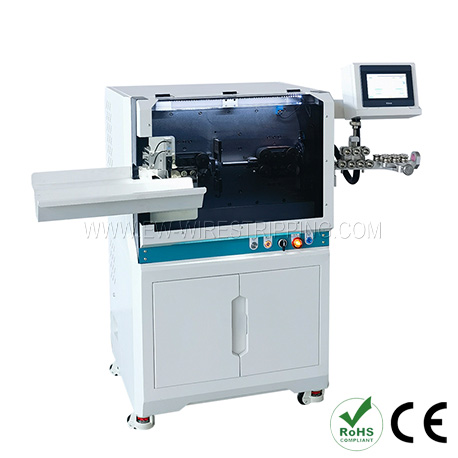

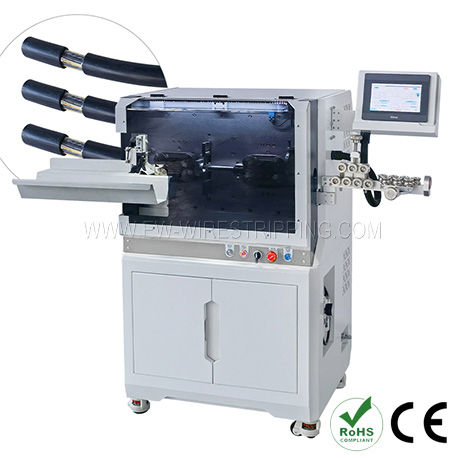

The EW-05F+1 is a versatile cut and strip machine for multi-core cables (max. 11 cores) and multi-stranded single wire up to 30 mm square.
1. Powered by hybrid servo motor, the productivity is maximized to 600 pcs./h (400 pcs./h multi-core cable).
2. Uni-V jacket stripping blades (optional radius blades for special jacket material).
3. Uni-flat core wire blades for max. 11 core wires (optional teeth blades for rubber insulation).
4. Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
5. The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
6. Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).
Model
EW-05F-6
Function
Cut, Strip
Conductor cross-section
0.75 - 30 mm²
Core wire stripping
N/A
Cutting length
1 - 99999.9 mm
Cutting length tolerance
< 0.002 * L (L = cutting length)
Stripping length (side I)

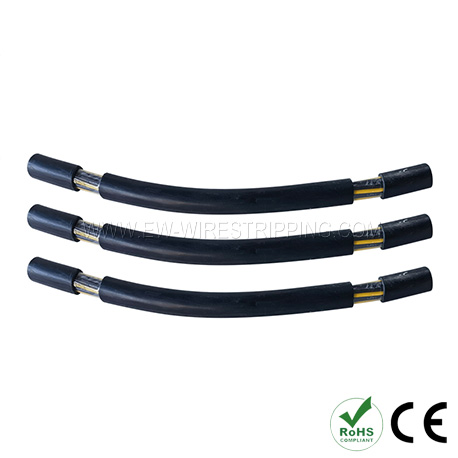

Cable jacket
- Full strip: 1 - 200 mm
- Half strip: 1 - 1000 mm
Stripping length (side II)
Cable jacket
- Full strip: 1 - 120 mm
- Half strip: 1 - 350 mm
Maximum guide tube diameter
16 mm
Productivity
3500 pcs./h
Blade material
Imported high speed steel
Display mode
7-inch touch screen
Driving mode
16-wheel driving, servo tool holder
Feeding mode
By belts
Power supply
110, 220 V (50 - 60 Hz)
Power
1 kW
Compressed air connection
0.5 - 0.7 MPa
Weight
140 kg
Dimension
707 * 590 * 1140 mm
