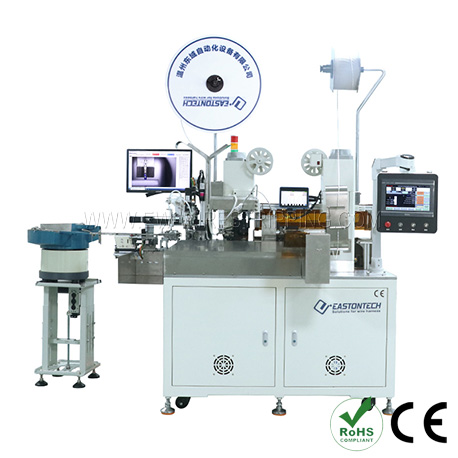

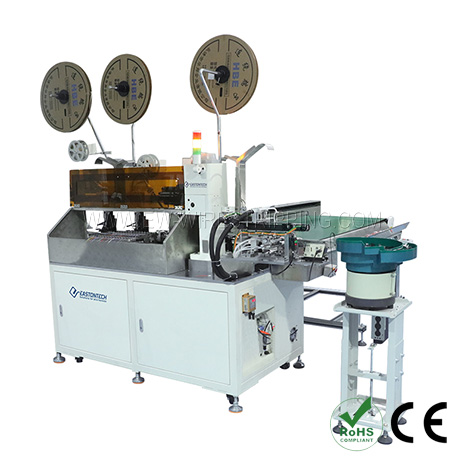

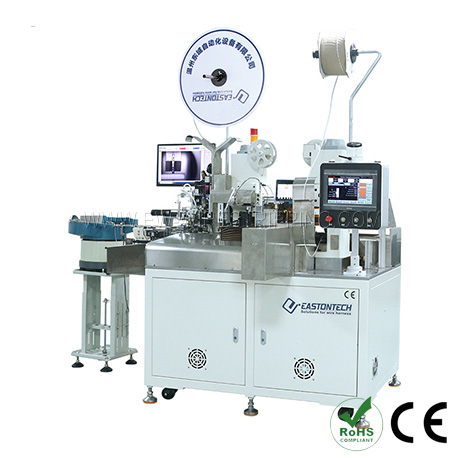

Double-end Stripping Crimping and Single Side Insert Housing Machine
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-8030 |
|
Applicable wire range |
AWG28-AWG20 Diameter ＜ 2.5mm |
|
Stripping length |
1-8mm |
|
Cut precision |
±0.1 mm |
|
Cutting length |
50-1000mm |
|
Capacity |
2000pcs/hour (L=100mm) |
|
Crimping force |
2.0T |
|
Stroke |
30mm |
|
Air pressure |
0.5-0.7Mpa |
|
Wire color |
2-6 color wires(must be the same specification） |
|
Room Moisture |
30%-80%RH |
|
Detection |
Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error, Insertion error |
|
Power |
220V/110V/50/60HZ |
|
Applicators |
OTP applicator |
|
Dimension |
1560*1100*1600mm |
|
Weight |
700Kg |
|
Options |
CCD visual Inspection; CFM |
Feature
*Equipment function: the front and rear ends are pierced through the shell, and the front end can be pierced through the shell and the rear end can be dipped in tin
*Cost saving: the front and rear ends are pressed through the shell, and the rear end is dipped in tin. All processes are automatically completed, saving production costs for customers.
*Good stability: The crimping end adopts eccentric shaft and cam structure, the crimping force of the terminal is balanced, the crimping of the terminal is neat, and the consistency is good.
*High precision: Servo motors are used to control cutting, peeling, pressure end positioning, shell feeding, shell piercing, and precise positioning.
*Simple operation: touch screen operation, easy parameter setting and operation, easy to understand at a glance, ordinary employees only need simple training, and one person can operate several devices

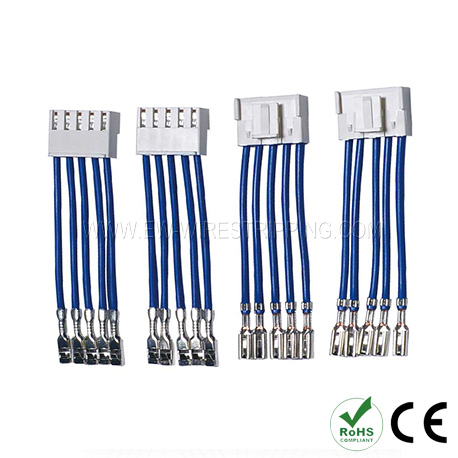

Application Range
More Info
Model：Double-end Stripping Crimping and Single Side Insert Housing Machine
Model:EW-8030
Applicable wire range:AWG28-AWG20 Diameter ＜ 2.5mm
Stripping length:1-8mm
Cutting length:50-1000mm
Capacity:2000pcs/hour (L=100mm)
Crimping force:2.0T
Air pressure:0.5-0.7Mpa
