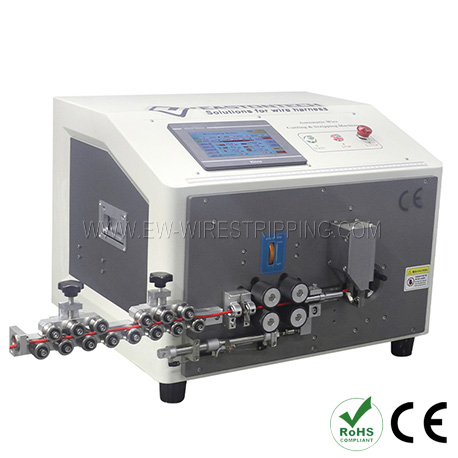

Model：Wire stripping bending machine(1-16mm2)
Scan the QR code
Model EW-3070
Conductor cross-section 1 - 16 mm²
Cutting length 0.1 - 99,999.9 mm
Stripping length (side I) 0.1 - 50 mm
Stripping length (side II) 0.1 - 20 mm
Conductor cross-section 1 - 16 mm²
Cutting length 0.1 - 99,999.9 mm
Stripping length (side I) 0.1 - 50 mm
Stripping length (side II) 0.1 - 20 mm
1.Full touch 7-inch LCD screen
2.Six-wheel drive wire feeding
3.One kilowatt servo motor cutter
4.One-key correction of wire length error
Model
EW-3070
Conductor cross-section
1 - 16 mm²
Cutting length
0.1 - 99,999.9 mm
0.1 - 50 mm
Stripping length (side II)
0.1 - 20 mm
Bending angle
30 - 90°(changeable within the range)
Maximum bending steps
13 (can be customized for more steps)
Blade material
Imported tungsten steel
Productivity
1000 - 2000 pcs./h
Power supply
110, 220 V (50 - 60 Hz)
Power
780W
Weight
54 kg
Dimension
500 * 480 * 380 mm
