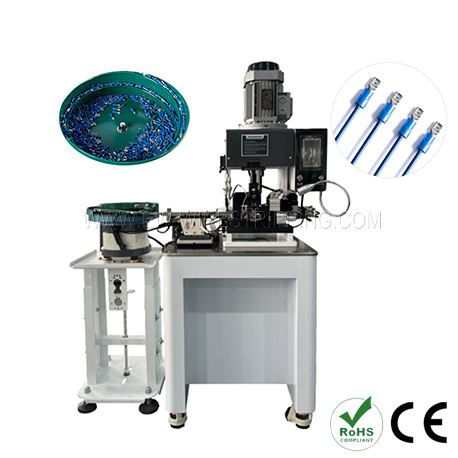

Loose terminal wire stripping and crimping machine
Electrical
Model：Loose terminal wire stripping and crimping machine
Model:EW-5370
Power Supply:110/220V/50/60Hz
Crimping force:3T/4T
Crimping terminal:Loose type terminal
Crimping stroke :35mm
Air Source:0.5～0.6mpa
Applicable wire Diameter:AWG14#-AWG32#
Power Supply:110/220V/50/60Hz
Crimping force:3T/4T
Crimping terminal:Loose type terminal
Crimping stroke :35mm
Air Source:0.5～0.6mpa
Applicable wire Diameter:AWG14#-AWG32#
Technical Data
|
Model |
EW-5370 |
|
Power Supply |
110/220V/50/60Hz |
|
Crimping force |
3T/4T |
|
Crimping terminal |
Loose type terminal |
|
Crimping stroke |
35mm |
|
Air Source |
0.5～0.6mpa |
|
Applicable wire Diameter |
AWG14#-AWG32# |
|
Stripping length |
1.0～8.0mm |
|
Stripping error |
0.05～0.1mm |
|
Position error |
0.05～0.1mm |
|
External dimensions |
L1150*W600*H1500mm |
|
Weight |
160KG |
|
Production rate |
2500-3500PCS/H |
Feature
• The wire stripping action of the machine is driven by a cylinder, with fast action speed and accurate positioning.
• It adopts centrifugal vibration plate, automatic loading of granular terminals, and variable frequency adjustment, saving time and effort.
• The feeding track is controlled by infrared rays. When the track is full of materials, the vibrating plate stops loading.
