Conductor cross-section: 0.75 - 30 mm2
Core wire stripping: 2 - 10 cores
Cutting length: not limited
Cutting length tolerance:< 0.002 * L

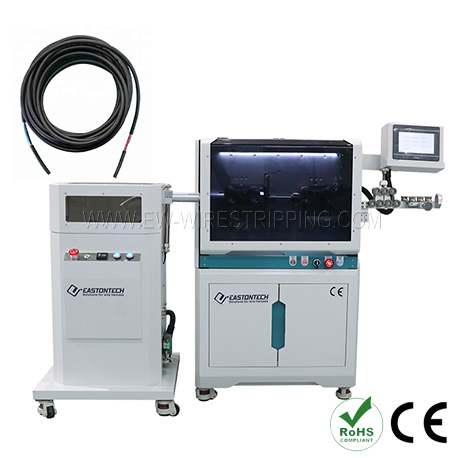

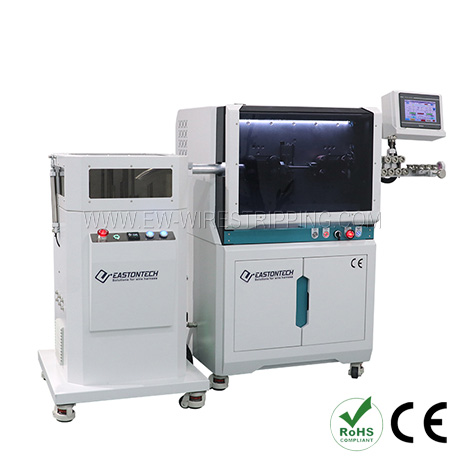

The EW-05F+C is a versatile cut and strip machine for multi-core cables (max. 11 cores) and multi-stranded single wire up to 30 mm square.
1. Powered by hybrid servo motor, the productivity is maximized to 600 pcs./h (400 pcs./h multi-core cable).
2. Uni-V jacket stripping blades (optional radius blades for special jacket material).
3. Uni-flat core wire blades for max. 11 core wires (optional teeth blades for rubber insulation).
4. Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
5. The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
6. Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).
EW-05F+
EW-05F-2
Conductor cross-section
0.75 - 30 mm²
Cable
Single core cable,Multi-conductor cable,Sheathed cable,PVC cable etc.
Core wire stripping
2-10 cores
N/A
Cutting length
1 - 999,999.9 mm
Cutting length tolerance
< 0.002 * L (L = cutting length)
Stripping length (side I)
Cable jacket
- Full strip: 10 - 200 mm
- Half strip: 1 - 800 mm
Core wire
- Full strip: 1 - 50 mm
- Half strip: 5 - 200 mm
Full strip: 10 - 200 mm
Half strip: 1 - 800 mm
Stripping length (side II)
Cable jacket
- Full strip: 10 - 80 mm
- Half strip: 1 - 300 mm
Core wire
- Full strip: 1 - 50 mm
- Half strip: 5 - 80 mm
Full strip: 10 - 80 mm
Half strip: 1 - 300 mm
Maximum guide tube diameter
18 mm
Productivity
2000 pcs./h
900 pcs./h (multi-conductor cable)
2000 pcs./h
Blade material
Imported high speed steel
Display mode
7-inch touch screen
Driving mode
Servo motor cutting with 16 roller driving system
Feeding mode
Belts feeding with pressure stripping function.
Roller Gap
Digital program control
Power supply
110, 220 V (50 - 60 Hz)
Power
1.1 kW
Compressed air connection
0.5 - 0.7 MPa
Weight
95 kg
Dimension
680 * 605 * 520 mm
Remarks
Custom options by sending samples
