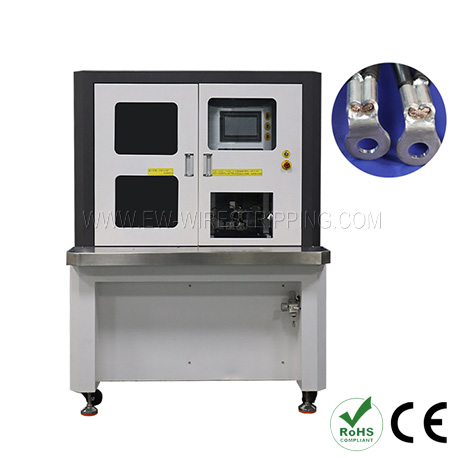

Servo Motor Vibrating Plate Terminal Crimping Machine AWG36# -AWG5#
Electrical
464
Model：Servo Motor Vibrating Plate Terminal Crimping Machine AWG36# -AWG5#
Model:EW-5405-8T/10T
Air Source:0.4~0.6mpa
Crimping capacity:8T/10T
Working capacity:AWG36# -AWG5#
Stroke :30MM
Crimping speed:1800-2000Pcs/H
Power:3000W
Air Source:0.4~0.6mpa
Crimping capacity:8T/10T
Working capacity:AWG36# -AWG5#
Stroke :30MM
Crimping speed:1800-2000Pcs/H
Power:3000W
Technical Data
|
Model |
EW-5405-8T |
EW-5405-10T |
|
Air Source |
0.4~0.6mpa |
0.4~0.6mpa |
|
Crimping capacity |
8T |
10T |
|
Working capacity |
AWG36# -AWG5# |
AWG36# -AWG5# |
|
Stroke |
30MM |
30MM |
|
Crimping speed |
1800-2000Pcs/H |
1800-2000Pcs/H |
|
Power |
3000W |
3000W |
|
Terminal type |
Loose terminal |
Loose terminal |
|
Voltage |
200V~240V 50/60Hz |
200V~240V 50/60Hz |
|
Dimension |
L1400*W900*H1700mm |
L1400*W900*H1700mm |
|
Weight |
250KGS |
250KGS |
Feature
● Adopt centrifugal vibrating plate, automatic loading of granular terminals, and frequency conversion to adjust the number, saving time and effort.
● The feeding track is controlled by infrared rays. When the track is full of material, the vibrating plate stops loading.

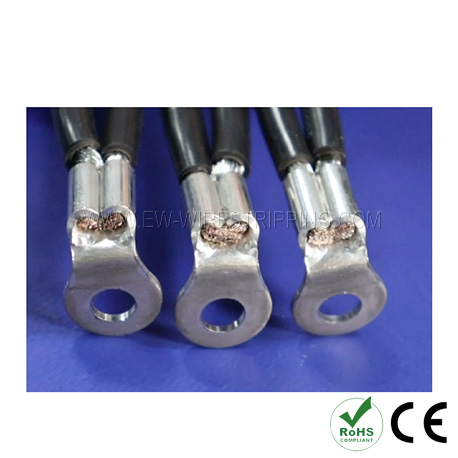

● Suitable for all types of new energy, electric power, industrial and other large square wire harnesses.
Application Range
