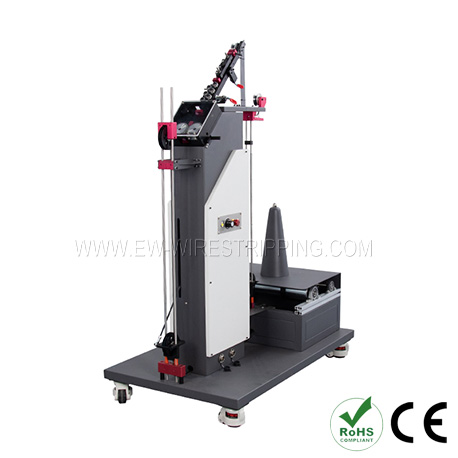

Double-Crimping Automatic Terminal Crimping Machine
Cut Strip Terminate& Solder
Technical Data
|
Model |
EW-22B |
EW-22B-1 |
|
Applicable wire range |
20-32AWG |
14-22AWG |
|
Feeding mode |
Two rollers feeding |
Four rollers feeding |
|
Stripping length |
Side A:0-6mm;Side B:0-10mm |
Side A:0-6mm;Side B:0-10mm |
|
Cutting length |
13-9999mm |
13-9999mm |
|
Cut precision |
±(1+0.002*L) mm, L=cut length |
±(1+0.002*L) mm, L=cut length |
|
Crimping force |
2.0T |
2.0T |
|
Applicators |
30mm or 40mm strokes for optional |
30mm or 40mm strokes for optional |
|
Air pressure |
0.5-0.7Mpa |
0.5-0.7Mpa |
|
Detection |
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
|
|
Machined wires |
Fluorine-resistant braided wire (compression thread) |
|
|
Power |
220V/110V/50/60HZ |
220V/110V/50/60HZ |
|
Weight |
450Kg |
450Kg |
|
Dimension |
1400*800*1500mm |
1400*800*1500mm |
|
Power cord plug |
European, USA, Chinese plug |
European, USA, Chinese plug |
Feature
1. The automatic terminal machine controls the pressing, cutting edge, peeling and half stripping. It can riveting terminals at one end of wire rod, half stripping at one end, full peeling and riveting terminals with two heads, high precision, fast speed and stable performance.
2, LCD display, full computer touch digital debugging parameters, simple operation.
3. The automatic terminal machine is controlled by the cutter seat and stepping link.
4, automatic terminal machine testing function is complete, wire, terminal, air pressure and other machines abnormal automatic alarm.
5. The automatic double ended terminal mechanism is novel. OTP direct die, transverse die and blade are replaced simply and automatically.
Application Range
More Info
Model：Double-Crimping Automatic Terminal Crimping Machine
Model:EW-22B
Cable Size:20-32AWG
14-18AWG(Thick wire)
Cutting Length:Standard 13-9999mm
Stripping Length:Side A:0-6mm;Side B:0-10mm
Capacity:3200-3800 pcs/ hour
Crimping force:2.0T (can be customized)
Cable feeder system:Optional
Pressure monitoring system:Optional (Soltec from Japan)
Cable Size:20-32AWG
14-18AWG(Thick wire)
Cutting Length:Standard 13-9999mm
Stripping Length:Side A:0-6mm;Side B:0-10mm
Capacity:3200-3800 pcs/ hour
Crimping force:2.0T (can be customized)
Cable feeder system:Optional
Pressure monitoring system:Optional (Soltec from Japan)
