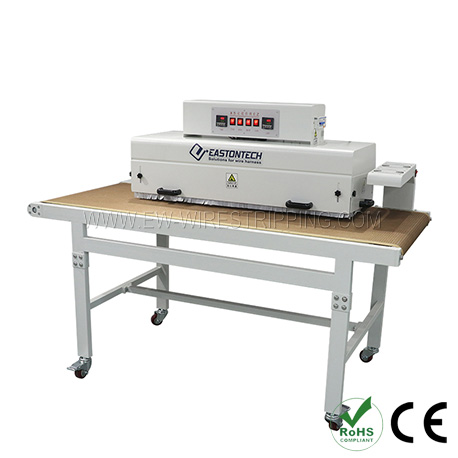

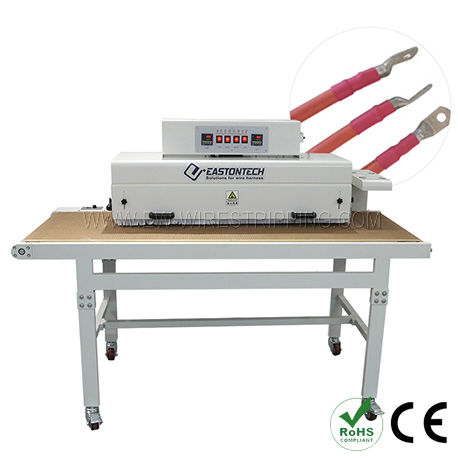

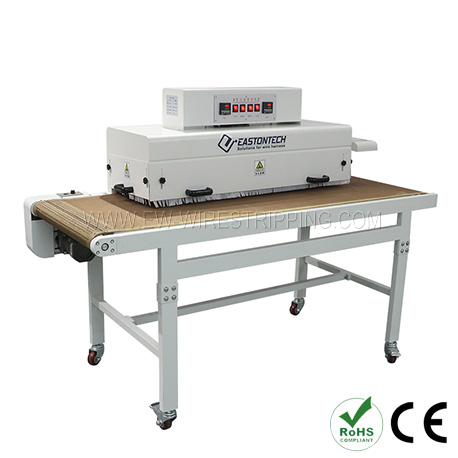

Heat shrinkage tube heating machine

Heat Shrinkage

596
Model:Heat shrinkage tube heating machine
Share to:
Model:EW-1940
Dimension:H1600×W700×D1200
Heating  space:H1000×W360×D100
Material  of  conveyor  belt:High  temperature  resistant  Teflon  mesh  belt
Heating  temperature:0-260℃
Voltage:380V/220V  50HZ

Technical Data

Model

EW-1940

EW-1940-1

Dimension

H1600×W700×D1200

H1800×W700×D1200

Heating space

H1000×W360×D100

H1000×W360×D100

Material of conveyor belt

High temperature resistant Teflon mesh belt

High temperature resistant Teflon mesh belt

Heating temperature

0-260℃

0-300℃

Voltage

380V/220V 50HZ

380V  50HZ

Power

7.2KW/4.5KW

8KW

Weight

100kgs

100kgs

Conveying speed

0~6m/min

0~6m/min

Conveying capacity

20KGS

20KGS

Heating method

Two sets of temperature controls (double-sided heating)

Two sets of temperature controls (double-sided heating)

Heating tube

Far infrared heating tube

Thermal radiation heating tube

Feature

·  The machine uses far-infrared heating tubes for heating (the new energy wiring harness uses

 thermal radiation heat shrinkable tubes). There are heating tubes installed on the top, bottom,

 left and right, which can be heated at the same  time. It is also equipped with a high-speed

centrifugal fan, which can

·  Stir the heat evenly to keep the entire box at a constant temperature; the products that

 need to be heat-shrunk and baked can be heated at the same time, maintaining the original

 characteristics of the product, so that the product will  not deform or discolor after heat-

 shrinking or baking.Stable quality.

·  Use high-temperature resistant Teflon mesh belt (temperature resistant 0~350℃), feeding

 in assembly line mode, fast baking speed and high efficiency;

·   Welding frame structure mode, the size needs to be customized. The model has a compact

 structure and exquisite design. It also has dual-function options of floor-standing and desktop

 models. It can also be moved at will to connect to the production line and synchronize control

 of the production line;

·  Intelligent control system, the heating temperature and speed can be adjusted at will,

 which can adapt to the temperature and heat shrinking time needs of different products;

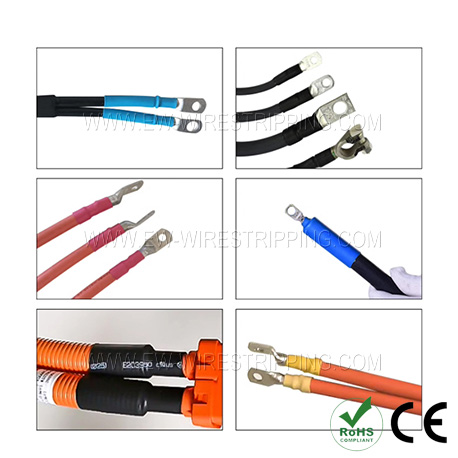

Application Range
